NARO Water Solutions - Model Wastewater Treatment -MBBR

NARO WATER SOLUTIONS offers wide range of municipal sewage treatment processes, from compact containerized packages (5 to 2,000 Cub. Meter Per Day) up to large city-scale solutions.

The offered process solutions are MBBR (Moving Bed Bio Reactor); Extended Aeration; MBR (Membrane Bio Reactor) and SBR (Submerged Bioreactor).

Moving Bed Biofilm Reactor (MBBR)

NARO’s MBBR is a highly effective biological treatment process based on a combination of conventional activated sludge process and biofilm media. The MBBR process utilizes floating media within the aeration and anoxic tanks.

The microorganisms consume organic material. The media provides increased surface area for the biological microorganisms to attach and grow. The increased surface area reduces the footprint of the tanks required to treat the wastewater.             MBBR is widely used in domestic sewage treatment applications, to achieve TSE quality for flushing into toilets, irrigation, or discharging into marine environment, with outlet quality result of BOD <10mg/l and TSS <10mg/l.

MBBR is also used as conjunction with other technologies, in complete process solutions for industrial effluent treatment.

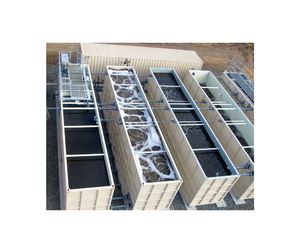

NARO’s MBBR are offered in CSEP containerized process tanks, or in GLS / GRP / RCC.

Advantage over other sewage treatment processes:

o   Compact units, with less area consumption.

o   Less retention capacity of aeration tank.

o   Low capital cost

o   Low operation and maintenance cost

o   Most feasible solution for municipal wastewater treatment

 Application:

o   Municipal & Industrial Wastewater

o   Laboratory & Healthcare

o   Hotels, Buildings & Labor Camps

o   Food and Beverage

o   Oil & Gas

o   Power Plants
