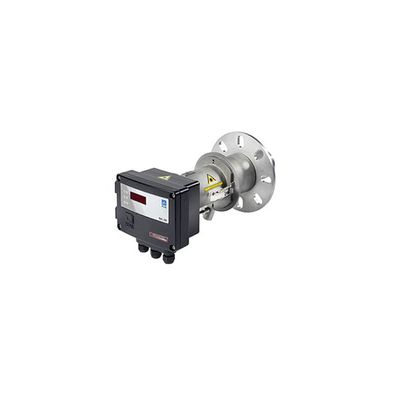

- ProScatter™ Backscatter sensor technology with superior minimum detection <1mg/m³
- Certified to 15 mg/m³ for processes with low typical emission limits
- Manual and remote Zero and Span (reference) checks available to ensure optimal instrumentperformance and to comply with EN 13284/QAL1
- Automatic Functionality Check – fully interrogates the optical system
- Purge Flow Fail Sensor option with inbuilt automatic optical shield activation
- Flue Gas Blocker option to protect Plant Engineers from harmful flue gases during maintenance
- Stacks after bag filters, cartridge filters, cyclones, electrostatic precipitators, no filtration
- Non-condensing / dry flue gases
Typical Applications:
- Incineration
- Metals (eg Steel/Aluminium)
- Minerals (eg Cement/Gypsum)
- Chemicals (eg TiO2 / Coating Powder)
- Power Generation Plant (eg Coal/Biomass)
- Measured parameters: Dust
- Technology: ProScatterTM Backscatter
- Measurement/Monitoring capability: <0 – 500 mg/m³*
- Stack/Duct diameter suitability: up to 10m
- Flue gas temperature: up to 400°C
- Baghouse: YES
- Cartridge Filter: YES
- Ceramic Filter: /
- Coalescent Filter: /
- Cyclone: YES
- Electrostatic Precipitator (ESP): YES
- Wet Electrostatic Precipitator (WESP): /
- Wet Scrubber: /
- Sensor variants: Stainless Steel
- QA checks: YES
- Measurement capability: <0 – 500 mg/m3
- Sensor Variants: 316 Stainless Steel
- Stack Temperature Ranges: -20°C – 250°C up to 400°C option
- Functionality and QA Checks: Automatic zero and span
- Data Output: RS485 (Modbus) output to Controller
- Air Purge: option
- Enclosure Protection Rating: IP65
- MCERTs certified to EN15267-3
- QAL1 as defined by EN14181
- QAL3 compliance to EN14181
