Ecolab - Model EcoTrans II -Measurement Transmitter

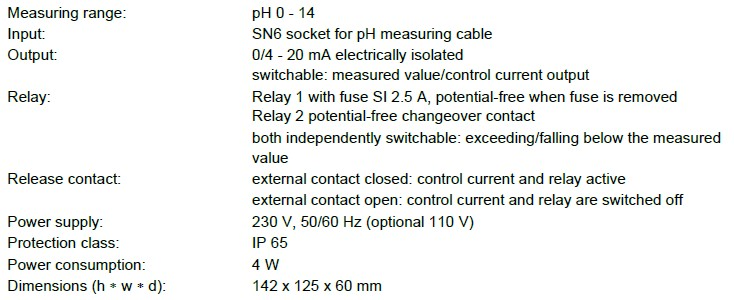

The EcoTrans II measurement transmitter records measurements in a range from pH 0 to pH 14 and converts these into a 4 - 20 mA standard signal (pH 0 = 4 mA, pH 14 = 20 mA). The current measured value will be displayed by a LCD display. The calibration is carried out by using the respective buffer solutions (pH 4 and pH 7 for acidic media, pH 9 and pH 7 for alkaline media) by means of a calibration potentiometer.
