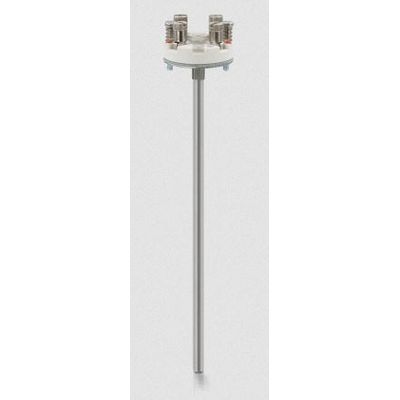

OPTITEMP - Model TC 100 -Measuring Insert with Thermocouple
The OPTITEMP TC 100 is a replaceable spring-loaded measuring insert with thermocouple for installation into temperature assemblies. It is made of a mineral insulated cable with laser welded bottom plug. Its measuring insert comes in type K or J, other types are available on request. The OPTITEMP TC 100 is highly flexible and features superior insulation resistance and a high degree of vibration resistance. It can be equipped with ceramic terminal block, flying wires or with an OPTITEMP head-mounted transmitter. It comes with sheath diameter Ø6 mm / 1⁄4" or Ø3 mm / 1⁄8" for quick response. The measuring insert is available with ATEX and IECEx approvals.
Measuring insert with thermocouple (TC) type K or J
- With flying wires, ceramic terminal block or temperature transmitter
- -40…+1150°C / +2100°F
- Spring-loaded design, with austenitic alloy (Inconel 600) sheath
- Also available as intrinsically safe (ATEX, IECEx)
- For installation in OPTITEMP industrial temperature assemblies
- With thermocouple (type K or J) according to DIN EN 60584
- Replaceable spring-loaded version for secure contact with the bottom of the thermowell
- Superior insulation resistance
- High degree of vibration resistance
- Quick-response versions with a diameter of 3 mm / 0.12"
- Standard and customised length
- Intrinsically safe versions for use in hazardous areas
Different process connections allow temperature assemblies to be adapted for use in almost all industrial sectors up to +1000°C / +1832°F:
- Insertion-type temperature assemblies
- Threaded temperature assemblies
- Flanged temperature assemblies
- Weld-in temperature assemblies
Depending on selected device configuration
General information
- Product type Temperature accessory
- Product family name OPTITEMP
- Product positioning With thermocouple (TC) type K or J
- Measurement principles Thermocouple (TC)
- Measurement variables Temperature
Approvals/Standards
- Certificates/Approvals Ex ATEX, IECEx
Operating conditions
- Process temperature -40…1150°C/ -40…2100°F
