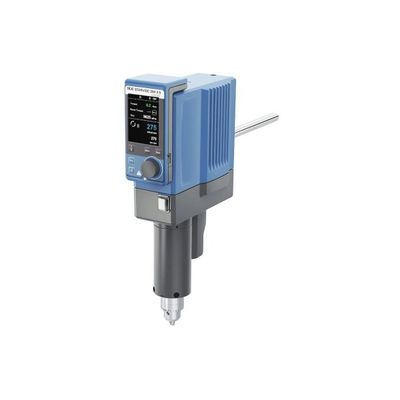

IKA STARVISC - Model 200-2.5 -Measuring Stirrers
Measure viscosity and display it, even during product development: the new IKA STARVISC 200-2.5 control torque-measuring stirrer makes it possible. The result can be read in real-time on the display. STARVISC therefore has a broad range of applications. This is particularly helpful during product development: STARVISC already clearly indicates while running research programmes as to whether the stirred substance can be used as desired.
High-precision measurement
STARVISC measures in a highly precise way and does this even during the manufacturing process. Samples no longer have to be taken separately.
Viscosity calculation
A viscosity calculation can be carried out immediately via a userfriendly menu.
Removable control unit
The modern TFT display is removable. This means that STARVISC can also be controlled from a safe distance.
Powerful stirrer
Even highly viscous substances can be intensively stirred using the powerful STARVISC stirrer.
- Stirring quantity max. per stirring position (H2O) 100 l
- Motor rating input 130 W
- Motor rating output 84 W
- Motor principle Brushless DC
- Speed display TFT
- Speed range 0/6 - 2000 rpm
- Intermittent operation yes
- Viscosity max. 100000 mPas
- Output max. at stirring shaft 84 W
- Permissible ON time 100 %
- Torque max. at stirring shaft 200 Ncm
- Torque I max. 200 Ncm
- Torque II max. 40 Ncm
- Speed range I (50 Hz) 6 - 400 rpm
- Speed range II (50 Hz) 30 - 2000 rpm
- Speed range I (60 Hz) 6 - 400 rpm
- Speed range II (60 Hz) 30 - 2000 rpm
- Speed control stepless
- Setting accuracy speed 1 ±rpm
- Deviation of speed measurement n > 300rpm 1 ±%
- Deviation of speed measurement n < 300rpm 3 ±rpm
- Stirring element fastening chuck
- Connection for ext. temperature sensor PT1000
- Temperature display yes
- Plug-in coupling (Ø) 10 mm
- Chuck range diameter 0.5 - 10 mm
- Hollow shaft, inner diameter 10.3 mm
- Hollow shaft (push-through - when stopped) yes
- Fastening on stand extension arm
- Extension arm diameter 16 mm
- Extension arm length 220 mm
- Torque display yes
- Nominal torque 2 Nm
- Torque measurement trend
- Deviation of torque measurement I 2.5 ±Ncm
- Deviation of torque measurement II 2.5 ±Ncm
- Timer yes
- Timer display TFT
- Time setting range 1 - 6000 min
- Temperature measuring range -10 - +350 °C
- Temperature measurement resolution 0.1 K
- Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
- Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
- Housing material alu-cast coating / thermoplastic polymer
- Communication distance (depend onbuilding) max. 150 m
- Dimensions (W x H x D) 91 x 395 x 231 mm
- Weight 5.9 kg
- Permissible ambient temperature 5 - 40 °C
- Permissible relative humidity 80 %
- Protection class according to DIN EN 60529 IP 40
- RS 232 interface yes
- USB interface yes
- Voltage 230 / 100 - 115 / 100 V
- Frequency 50/60 Hz
- Power input 130 W
