Autarkon - Measuring System With Compact Orifice

FromMETRA Energie-Messtechnik GmbH

SHARE

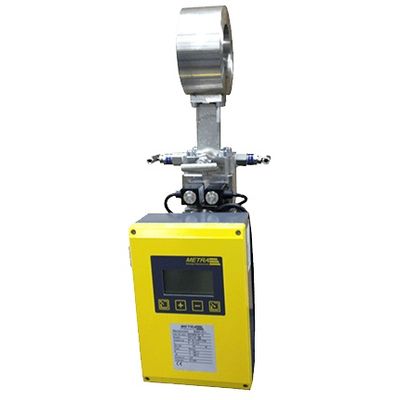

The measuring system “autarkon” -consisting of compact orifice, transmitter and calculator- is mainly used for energy and flow measurements with steam, technical gases and liquids such as thermal oil and glycol/water mixtures for pressure ratings up to PN40. Application examples are energy measurements for steam and liquids in production companies within the framework of the energy management system according to ISO 50003 in and emissions trading. The same applies to the balancing and cost allocation of energy flows to the manufactured products.

Most popular related searches

energy management system

flow monitoring

emissions trading

differential pressure monitoring

pressure monitoring system

compaction system

pressure monitoring

temperature monitoring system

temperature monitoring

Fluid: steam, liquids (Thermal oil), glycol/ water mixtures
Diameter: DN 15 up to DN 250
Connection: wafer design
Material: stainless steel
Max. temperature: 250°C compact device, 350°C remote design
pressure rating: PN 40
Flow computer ERW 700: automatic correction of the flow coefficients and the expansion coefficient, extensive logger functions

Plausibility and accuracy check possible during operation
No maintenance, no wear and tear
High measurement dynamics with minimum measurement uncertainty at the same time
Long-term stability due to automatic zero adjustment
Compact, highly integrated measuring system with pressure and temperature compensation in the measuring device
M-Bus, Modbus, Profibus dp, Ethernet interface
