METRA Energie-Messtechnik GmbH products

Flow / energy meter for saturated and superheated steam is adapted by the opening ratio of the orifice plate to the metrological requirements. This achieves optimum utilization of the available measurement range.

Major advantages are the short required inlet- and outlet sections and the small residual pressure loss.

Measuring and registering mass and energy of steam.

Small inlet and outlet section.

Plausibility check during operation possible . Also suitable for thermo oils and water / glycol mixtures

Measuring and registering the standard volume, the volume or the mass of technical gases and measuring and registering the mass or energy of steam. Specially developed for high-precision billing measurements (compressed air contracting and steam contracting). Major advantages are the short required inlet- and outlet sections and the small residual pressure loss.

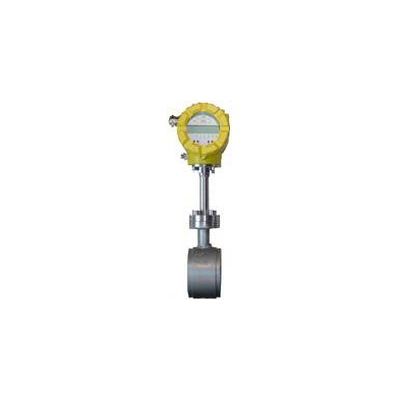

The measuring system “autarkon” -consisting of compact orifice, transmitter and calculator- is mainly used for energy and flow measurements with steam, technical gases and liquids such as thermal oil and glycol/water mixtures for pressure ratings up to PN40. Application examples are energy measurements for steam and liquids in production companies within the framework of the energy management system according to ISO 50003 in and emissions trading. The same applies to the balancing and cost allocation of energy flows to the manufactured products.
