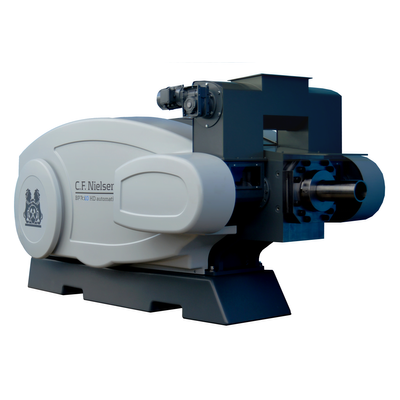

C F Nielsen - Model BP 7010 -Mechanical Briquetting Presses
The mechanical briquetting press BP7010 has an advanced design and is the top line in briquetting. The double feeding system guarantees high capacity, regardless of the density of the raw material.
Most popular related searches
mechanical briquetting press
briquetting press
briquetting
industrial briquetting
water cooling
lubricant system
cooling water
- The mechanical briquetting press BP7010 has an advanced design and is the top line in briquetting. The double feeding system guarantees high capacity, regardless of the density of the raw material. The press is equipped with an advanced control system that allows internet access. It is possible to monitor, operate or search for failures and even to reprogram the PLC-function via an internet connection. All operation texts and failure notices can be shown in up to 16 languages. The log function is an important tool for analyzing and improving the briquetting process.
- The BP 7010 is an extremely strong press with heavy bronze bearings and a sturdy housing made of high tensile steel and fixed on heavy steel reinforced concrete foundation which secures a quiet and safe operation with extremely low vibration level.
- A unique piston and die system with exchangeable piston crown and wear rings is available for different types of briquettes from various raw materials.
- The press is mainly suitable for high capacity production of consumer briquettes with a high density with a10-12% moisture and a capacity of up to 1700 kg/h. Briquettes can be round with a diameter of up to 100 mm or square 85×85 mm.
- Modern design with streamlined fiberglass covers
- Touch screen operation via control panel or your iPad
- Latest PLC software for control system and internet log in
- Service-friendly and easy to clean
- Easy to service and low maintenance costs
- Die system with exchangable wear parts to reduce costs
- Efficient oil/water cooling
- Heavy built and suitable for running 3-shift operation
- Briquette size - mm nominel: 090 /01OO/ sq. 75x75 mm
- Main motor - with softstart: 55/75kW
- Capacity range - Industrial briquetting: 1200-2300 kq/h*
- Capacity range - Consumer briquetting: 900-1500 kg/h*
- Pressure lubrication: Yes
- Control system - standard (optional): BBCS (ABCS)
- Dimensions (LxWxH) m: 3,2x1,7x1,6
- Weight app. (kg): app. 6500 kg
* The capacity is depending on the raw material and the type of briquette being produced.
