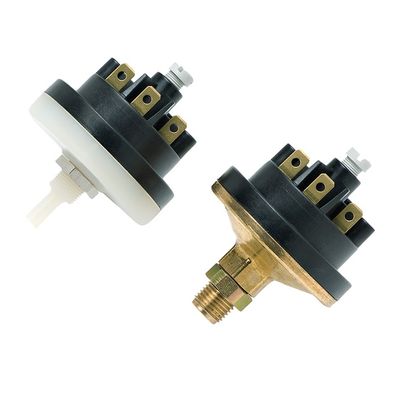

Huba Control - Model 620 -Mechanical Pressure Switch
FromHuba Control AG
Type 620 pressure switches, with 13 pressure ranges, are suitable for liquids and gases. Body materials are available in plastic, brass and aluminium, with a choice of NBR, FPM, EPDM and silicone diaphragms. Very high precision through finely tuned measurement stages and high longterm stability. Rugged design and especially suitable for use in general industrial equipment construction, process technology and food automation. Mechanical Pressure Switch 620
2 … 220 mbar.
Most popular related searches
- High accuracy by 13 ideally designed pressure range increments
- Switching differences adjustable
- High long term stability with repro ducibility of switching points < ±0.3 mbar
- Customer specific switching points adjustable in factory
- Compact, rugged design
- Ideal price / performance ratio
- Medium: Liquids and neutral gases
- Pressure range: 2 … 220 mbar
- Electrical connection: Screw terminals, flat connector 6.3 mm
- Pressure connection: Inside thread M5, hose connector ± 6 mm, outside thread
- Mounting bracket
