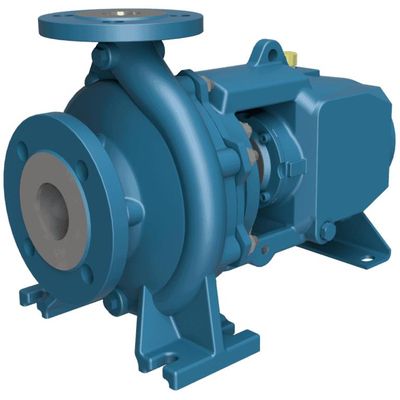

CDRModel TCH -Mechanical Seal Pump

SHARE

Available in a variety of configurations, the TCH range of mechanically seal centrifugal pumps offer you a cost-effective option for chemical processing and fluid handling applications.  These heavy-duty pumps are robust and can handle clean, contaminated and abrasive liquids which are hot, superhot, acidic or caustic whilst different impeller options allow for a wide range of viscosities.    Improved manufacturing standards in accordance with ISO 2858 / DIN 24256 provides you with efficient, reliable and safe solution for more arduous applications with increased shaft rigidity and longer bearing life over water spec pumps.

Most popular related searches
  • Capacity up to 500 m3/h and heads to 16 bar
  • Overall dimensions and performances are in accordance to standards ISO 2858/DIN 24256.
  • High hydraulic efficiencies and low NPSH requirements.
  • Shaft sealing by packed stuffing box, single or double mechanical seals
  • Pump casing and seal housing can be provided with heating or cooling chambers, as needed.
  • Units up to 30 kW size can be close-coupled, with the addition of a support lantern, to motors with B5 flange. This monoblock design offers great alignment advantages, simplicity of assembly and guarantee of perfect alignment even after transportation.
  • From the TCH series have derived series TCT, TCA, and TCD that are designed for very specific pumping applications
