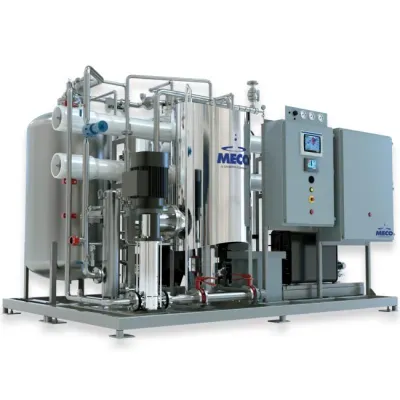

MECO MASTERpak - Packaged Reverse Osmosis + Electrodeionization for Purified Water
MECO’s packaged reverse osmosis purification system + EDI solution, the MASTERpak™, incorporates pretreatment, reverse osmosis and electrodeionization for efficient, easy-to-use purified water production, all on a single reverse osmosis skid. The MASTERpak™ is versatile enough to be customized to your specifications, and it is delivered, installed, validated and supported by a MECO service team that knows the importance of being responsive. From remote online monitoring and diagnostics to on-site service, MECO is there when and where you need us.
Most popular related searches
package reverse osmosis
reverse osmosis and electrodeionization
reverse osmosis
water purification
backwash carbon filter
chemical injection pump
reverse osmosis skid
purified water production
variable frequency drive
package reverse osmosis system
MASTERpak™ Product Highlights – Overview
- Completely pre-packaged “plug and play” system
- Product quality exceeds current USP standards up to 18 MΩ
- Integrated controls system
- Optional complete validation package with IQ/OQ protocol execution
- Supported by MECO 24-hour customer service
- Backed by warranty
- Efficient Component Layout
- Available individually or as part of a complete water plant design

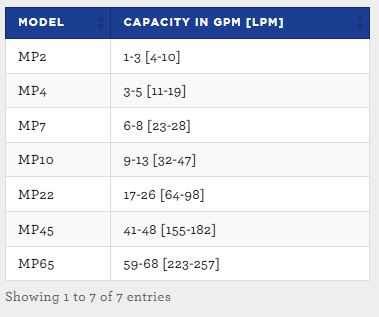

- Showing 1 to 7 of 7 entries
- MASTERpak™ Product Highlights – Overview
- Completely pre-packaged “plug and play” system
- Product quality exceeds current USP standards up to 18 MΩ
- Integrated controls system
- Optional complete validation package with IQ/OQ protocol execution
- Supported by MECO 24-hour customer service
- Backed by warranty
- Efficient Component Layout
- Available individually or as part of a complete water plant design
Standard Features
- All major pretreatment, reverse osmosis and electrodeionization components located on skid(s)
- Unit is completely piped, wired and assembled at the factory
- Fully functional wet FAT
- Reduces installation costs and startup time
- All functions of the unit are automated and controlled from the Operator Interface Terminal (OIT)
- Feedwater PID loop
- Allows for fluctuations in feedwater pressure and temperature without affecting performance
- Backwashable carbon filter
- Eliminates channeling associated with non-backwashable designs
- Allows for the removal of dead microorganisms after sanitization
- Reduces operational costs
- Increases reliability when compared to chemical injection
- Pump with variable frequency drive (VFD)
- Allows for unit operation, chemical cleaning and hot water sanitization functions all with a single pump
- Hot water sanitizable
- Recirculation mode
- Allows unit to continue operation when no water is being drawn from the system
- Stainless Steel Feedwater Break Tank
- TEFC motor
- CPVC pretreatment piping
- Sanitary 316L SST permeate and EDI piping
- Premium valves and instrumentation
- Polypropylene air lines
- Stainless steel hardware
- Single point power supply
