Harden - Model TS Series -Medium Duty Two Shaft Shredder
Harden® TS series are medium-duty Double shaft shredder. TS series equip a single motor and gearbox. A set of transmission gear drives two shafts rotating together, TS series are compact but with a powerful core, strong shaft and blades and various operating protection. TS series are economical, batch produced with well workmanship. Each process, such as heat treatment, hardness testing, and structural flaw detection, is strict to ensure quality.
Middle Duty:
Harden TS series medium-duty double shaft shredder is equipped with single unit motor and reducer, two sets of cutter shafts are driven to run simultaneously through reducer. TS series products are compact but with a powerful core, imported blades, alloy main shaft, several protections, integral speed reduction bearing pedestal, etc.
- Model:TS303?TS508?TS612?TD612?TD912?TD1216(Hydraulic driven)
- Motor Power(kw):7.5?22?37?60+45?132?200

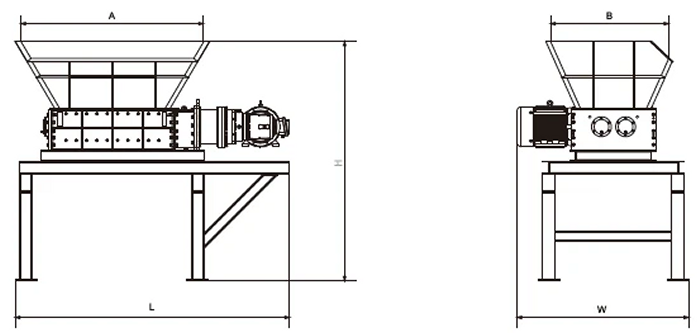

- Size of Cuting Chamber(A*B)(mm):320*300 ?850*500?1250*650?650*1250?900*1250?1200*1600

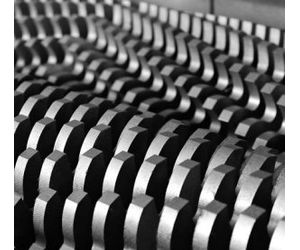

Blades Made in High Strength Alloy
Stable Quality | Wear-Resistant | Never Fracture

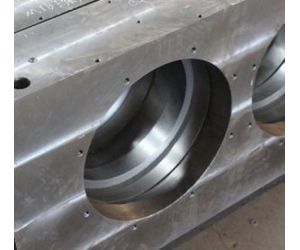

Professional Design of Cutting Chamber
Stable Operation | Internal Stress Decomposition | Strong Loading Capacity
Patented Spline Shafts and Coupings
Quick Maintenance | High Bearing Capacity
- Categories: Two Shafts Shredder
- Brand: Harden
- Model: TS612
- FOB port: Zhongshan, Guangzhou
- Terms of Payment: L/C, T/T
- Download DOC: pdf icon
- Update Time: December 6,2022
- Reliable high strength alloy material
- Patented cutting chamber design
- Patented spline bearing pedestal
