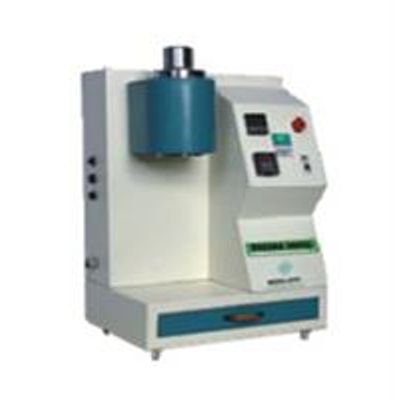

Melt Flow Indexer
Melt Flow Index Apparatus for plastic measures the melt flow index of plastic material. The system consists of a heated extruder tube, an interchangeable jet through which the material under test is extruded, and a piston with dead weights to apply the specified pressure on the material inside the extruder tube. The extruder tube is made from carbon steel and is heated by means of a Bend Heater, which surrounds its outer circumference. A PID controller is provided to indicate & control the temperature of the tube. The heater logged with mineral wool insulation. The assembly is fixed on a rigid stand. The bottom of the tube is lagged with a insulation of PTFE to prevent sticking of the extrudate. The jet through with the extruder is pushed out is made from hardened and ground die steel. It is held at the bottom of the extruder tube. The piston made from silver steel relieved at the upper end is provided to push the extrudate out of the jet.
