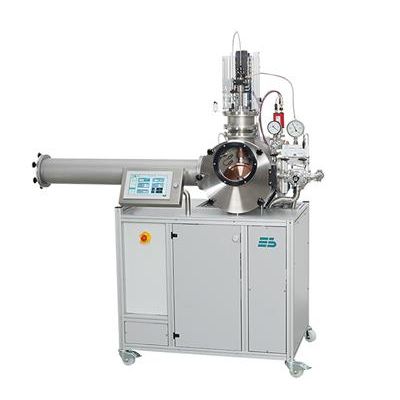

Edmund-Bühler - Model MSP 10 -Melt Spinner
Laboratory scale system for max. 5 or 10 g per run. Copper spinning wheel ø 200 mm. Complete system consisting of a high vacuum chamber, rack system, adequate high vacuum pumping system (including turbomolecular or diffusion pump), and RF generator (different models available, 5 - 6 kW).
Most popular related searches
vacuum pump system
radio frequency generator
material science
recirculating chiller
pump system
vacuum pump
crucible
infrared pyrometer
laboratory system
scientific laboratory
- Max. charge: 5 - 10 g (depending on generator)
- Generators: 5 kW / 6 kW
- Spinning wheel: solid copper, ø 200 mm
- Width of ribbons: 1 - 10 mm
- Connection: 400 V, 3-ph, 50/60 Hz (generator) 230 V, 50/60 Hz (melt spinner)
- Crucibles: boron nitride or quartz, with slit nozzle or round nozzle
- Options: Infrared quotient pyrometer, Automatic crucible positioning system TPS 1, Casting option, Recirculating chiller
