Saltworks - Model XtremeRO & FusionRO -Membrane Brine Concentrators RO System
Next-generation reverse osmosis (RO & UHP RO) and hybrid reverse osmosis/nanofiltration (UHP RO/NF) systems concentrate and recover freshwater from high-strength brines. Achieve industry-leading recovery and reliability with a membrane-based system while reducing the size and cost of downstream thermal treatment.
Reverse Osmosis (RO) is the world’s dominant desalination technology. It uses pressurized, semi-permeable membranes to remove dissolved salts from water. RO is typically the most economical solution for initial brine treatment and should be considered first for most industrial desalination applications.

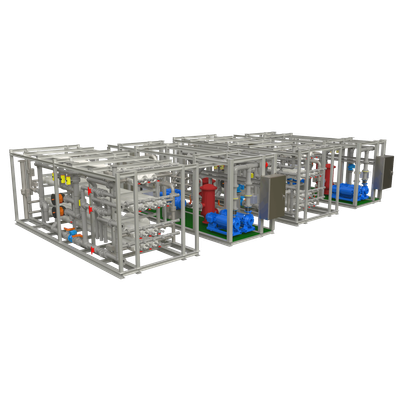

Saltworks’ membrane brine concentrators are built on our Uni-RO platform—a modular, repeatable, and standardized design shared across XtremeRO, FusionRO, and SelectNF. The core skid, frame, and components are the same, with only pressure ratings and membrane types varying between systems.
Uni-RO is a fungible shared architecture that simplifies scaled deployment while delivering economies of reliability, operation and maintenance. All Uni-RO based skids are factory assembled and tested for lowest field installation cost.
Saltworks packages XtremeRO and FusionRO into digitized, end-to-end systems for minimal liquid discharge (MLD) applications. Our MLD systems are further enhanced with our BrineRefine and XtremeUF technologies that remove scaling ions, such as silica and calcium. This minimizes fouling risk, enhancing membrane longevity and allowing XtremeRO and FusionRO to operate reliably at osmotic pressure limits.
Our MLD systems also include intelligent diagnosis and self-cleaning. The result is a complete, fully automated membrane-based brine concentrator with industry-leading reliability and lowest total cost.
Saltworks specializes in designing and delivering complete membrane brine concentration systems for industrial desalination, chemical recovery, or lithium refining applications.
We provide initial technical consultation to understand treatment options, residual management, integration with existing treatment processes, and total cost optimization.
Take advantage of our process design expertise, comprehensive pilot testing program, full-scale design and delivery, and remote operations and support.
