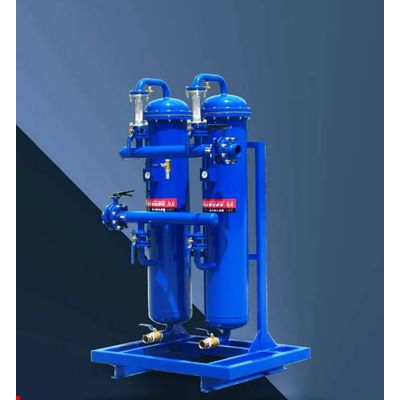

Jingyuan - Model JY-DX5 -Membrane Separation Fine Filter
This model is a modular design product. It adopts Jingyuan’s advanced membrane filter materials to balance the oil flow and filtering effect, allowing the maximum flow to effectively filter targeted impurities and moisture at the same time, which can be achieved under the condition of minimum back pressure and maximum flow. The high-efficiency, multi-homogeneous uniform membrane microporous structure makes it have excellent filtration and separation performance, and can be cleaned and backwashed. Wide range of applications, suitable for gasoline and diesel, aviation kerosene, lubricating oil, hydraulic oil, gear oil, etc.
- Fuel Polishing & Filtration Services
- Diesel and Oil Filtration
- mobile fuel polishing system
- Diesel Fuel Quality & Storage Tank Solutions
- Bulk Diesel Filter
- Diesel storage tank and fuel filtration purification
- Fuel Polishing Commercial Generators
- Diesel Fuel Farm Upgrade
- Diesel Fuel Purifier
- The Complete Solution to Water in Fuel
- Clarification filtration and removal of visible particles
- Solve oil turbidity caused by tiny suspended particles, impurities, moisture and colloids
- High efficiency, energy saving, environmental protection, overall safety, reliability and compliance
- Removal of free moisture in petroleum or mineral oil products, removal of impurities, improvement of product quality
- Skid design, more convenient installation, use and maintenance, compact design, small footprint, and easy overall migration
Fuel quality is crucial for fleets, trucks, and heavy equipment. From damaged engines to increased sulfur emissions, dirty fuel can affect business operations in negative ways. To prevent these expensive problems, it’s important to maintain fuel quality with diesel fuel polishing.The DX5 Fuel Polishing System is a cost effective way to filter diesel, jet fuels, mixtures of bio diesel, and other petroleum hydrocarbon fluids in storage or transport.
- Model: JY-DX5
- Flow rate: 1~5 tons/hour
- Filtration accuracy: 2~15μm
- Filter material: Jingyuan membrane material
- Working pressure: 0.2~0.35Mpa
- Pre-filter: Y
- Oil inlet and outlet pipe diameter: DN80
- Applicable oil: diesel, aviation kerosene, lubricating oil, hydraulic oil, gear oil and other mineral or petroleum base oils
- Size: 1250×1000×2160mm
