ENVI-PUR - Membrane Wastewater Treatment Plants
A membrane bioreactor (MBR) WWTP combines conventional biological wastewater treatment with membrane technologies. Separation of activated sludge in conventional wastewater treatment plants takes place in settling tanks. This method of separation therefore has its limits in the quality of purified water and in a higher demand on the composition of activated sludge. Membrane separation consists of suppression or microfiltration, where the mixture of purified water and sludge is filtered through vacuum through membranes and the resulting effluent (permeate) is free of almost all undissolved substances and microbial contamination, so the permeate is hygienically secured.
- High quality purified water (permeate) suitable for recycling
- Thanks to the higher volume load of activation, the capacity of the existing treatment plant can be increased to 2-3 times the original capacity
- MBR can handle materially and hydraulically unstable inflow to the treatment plant

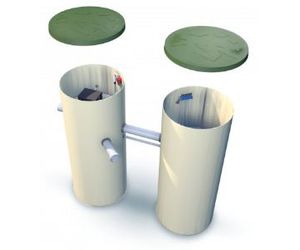

Series wastewater BC 6-30 MBR consists of two cylindrical tanks in which the first serves as a primary sedimentation and sludge storage while the second tank is activated with an inserted membrane module or modules. The treatment plants can be supplemented with phosphorus precipitation. The treatment plants have an international CE certificate.
Designed for: family houses or smaller guesthouses
The set contains:
- plastic tank of WWTP
- technological installation including membrane module
- diaphragm blower, permeate pump
- control unit
- cover of WWTP
- initial training
The BC 50-1100 MBR treatment plant type series is placed in rectangular containers. The membrane chamber with inserted modules is always separate. According to the specific project, it is possible to choose the type of mechanical pre-cleaning, one or two-line arrangement incl. sludge tanks, phosphorus precipitation or automatic cleaning of membranes with chemicals. Treatment plants up to 50 EO have international CE certification.
Designed for: guesthouses, hotels, smaller businesses and municipalities

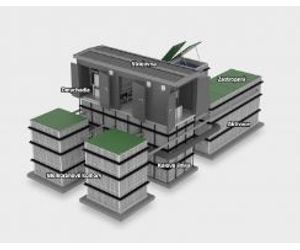

The compact solution of mobile membrane treatment plants is placed in an insulated steel container. The container is divided into individual parts: mechanical pre-cleaning, activation, membrane chamber and engine room.
Designed for: temporary and permanent wastewater treatment
