D-Tect - Mesh Networked Radiation Detector

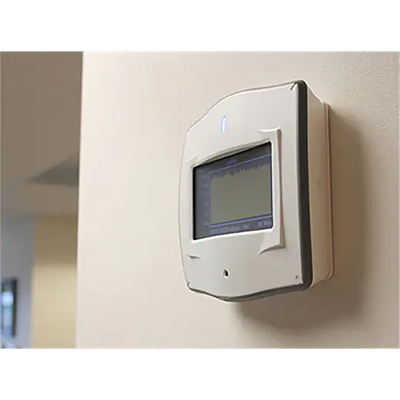

The Rad-DX is a mesh networked radiation detector with sensitive scintillator crystals that can be mounted just about anywhere. The Rad-DX runs on the D-tect SensorNet, allowing the user to monitor a full network of Rad-DX units from a tablet or PC. Data including dose rates can be viewed real-time or from past event logs.
The Rad-DX operates on the D-tect SensorNet – an automatic communication network that allows users to monitor a full network of Rad-DXs as long as they are in range of a single Rad-DX system! The Rad-DX units will automatically form an intelligent, self-healing mesh network, allowing them to be constantly connected to each other as well as to the user network.
Like the rest of the D-tect radiation products, a sensitive scintillation detector allows the Rad-DX to detect even faint sources of radiation within 1 second.
Each Rad-DX can be controlled and monitored by a PC on the network with the DX-View software or across the internet on any Tablet or remote PC with the DX-Dashboard software. All communication is protected through 128-bit encryption. All devices can be monitored in real-time or past event logs can be reviewed. Monitor Rad-DXs on a floor plan or map displays providing an intuitive understanding of the location of a radioactive source. Dose rates can be viewed in multiple graph formats.
Several supporting products help make the Rad-DX a robust radiation detection solution. For more information about these accessories, see our DX products page.
To set up your DX Account, visit this page.
The Rad-DX was listed in a Wired online publication as one of the first commercial products to use the Contiki Operating System/Mesh Network.
- Mission: Area Monitor
- Radiation Detector: Large cesium iodide scintillation (CsI) crystal
- Communication: D-tect SensorNet, Wi-Fi, Ethernet, USB
- Energy Range: 59 keV – 2 MeV
- Display: Optional bright LCD display
- Battery Back-Up: Lithium Ion
- Power: 110/240V AC, 50/60Hz
- Response Time: < 1 Second
- Dose Rate Range: 1 µRem/hr – 100 mRem/hr
- Dose Rate Linear Error: +/-10%
- Units: mrems/hr, µSv/hr, cps
- Calibration: Automatic
- Dimensions: 5.97″ x 5.92″ x 1.75″(15.2 cm x 15 cm x 4.4 cm)
- Weight: Under 1 lb (0.45 kg)
- Environment: IP65 rated for indoor/ outdoor operation
