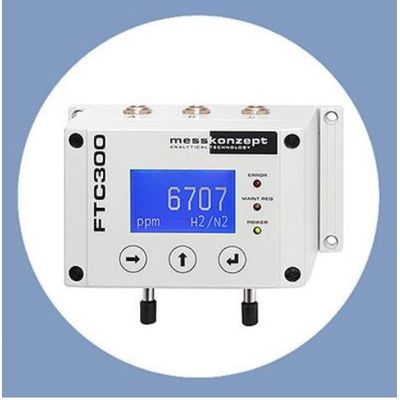

Messkonzept - Model FTC300 -Gas Analyzer for Process Engineering
The FTC300 is a thermal conductivity analyzer with outstanding properties for measuring tasks in process analytics. The device is characterized by high measurement accuracy and stability. It has a comfortable operating menu that allows you to adjust, parameterize and configure without much effort. In addition, operator and data access via an RS232 interface are possible, as well as various analog signal inputs and outputs. The robust design of the FTC300 is designed in protection class IP65 and enables operation at ambient temperatures of -20 ° C to + 50 ° C and is pressure-resistant up to 20 bar. For the measurement of hydrogen in nitrogen, the smallest measuring range is 0 to 0.5 vol.%.
The thermal conductivity analyzer FTC300 can be set up in such a way that switching between different measuring tasks is possible. Concentration determination in up to 16 different binary gas mixtures is possible. This option can be ordered under the keyword “Multi Gas Mode”.
The FTC300 provides a highly effective routine for cross-sensitivity compensation, which can be flexibly adapted to the respective measurement task. It requires as an input external voltage signal, which represents the concentration of the cross-sensitivity causing gas components.
General:
- Measurement process Thermal conductivity
- Sampling Analyzer extractive
- Connection 6mm pipe
- Dimensions (WxHxD in mm) 145x80x85
- Protection class IP 65
- Pressure-proof to 20 bar absolute
- Power supply 18V to 36V DC / 700mA
- Ambient temperature range -20°C to 50°C
- Weight to 1800g
- T90 time at 60l/h < 1sec
Communication:
- RS232 Yes
- Current output 1x, 0/4-20 mA
- Voltage output 2x, 0-10V
- Display Yes
- Relays 3x
- Service program SetApp 2.0 Yes
- Calibration on site Yes
Options
- Flow measurement Yes
- Flow monitor Yes
- Infrared measurement —
- Multi Gas Mode Yes
- Protection against corrosion Yes
- Protection against condensate and dust Yes
- Suitable for inflammable gases Yes
- Moisture measurement Yes
- Cross-sensitivity compensation Yes, external signal required
Specifications gas analysis
- Noise < 1% of smallest range
- Drift at zero point per week < 2% of smallest range
- Repeatability < 1% of smallest range
- Non-linearity < 1% of range
- Measuring error with ambient temperature change per 10°K < 1% of smallest range
- Flow influence between 60l/h and 90l/h per 10l/h < 1% of smallest range
- Fault with measurement gas change (Pabs > 800 hPa) per 10 hPa < 1% of smallest range
