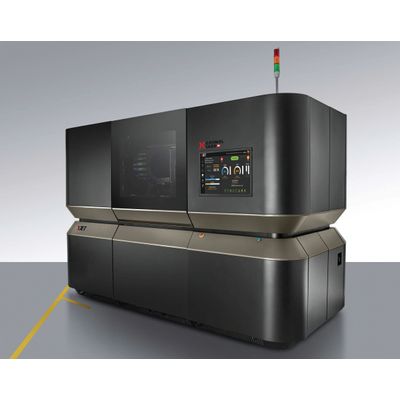

XJet Carmel - Model 1400M -Metal AM System
The XJet Carmel 1400M is the industry’s optimal metal AM system for applications requiring unrivaled quality, accuracy and repeatability combined with high productivity. The system enables easy and safe production of high-density metal parts for wide-ranging applications and industries.
Featuring a 1,400 cm² (217 in²) build tray, one of the industry’s largest, the Carmel 1400M enables the simultaneous production of multiple identical or different metal parts at zero cost of geometric complexity. Support structures made of soluble material easily dissolve and reduce labor involvement to a minimum, significantly reducing the need for time-consuming and costly post-processing.
Our Carmel 1400M leverages XJet’s revolutionary NanoParticle Jetting™ (NPJ) technology. This patented inkjet technology enables the production of metal AM parts of the highest quality – featuring unprecedented levels of detailing, finish and accuracy – without compromising throughput or build time.
Build Tray: mm: 500 x 280 in: 19.7 x 5.5
Materials: 316L Stainless Steel
System Dimensions: cm: 310 w x 212 h x 185 d; in: 122.0 w x 83.5 h x 72.8 d
System Weight: kg: 3,000 (3.0 tons); lb: 6,614
Shipping Pallet Dimensions: cm: 330 w x 240 h x 200 d; in: 129.9 w x 94.5 h x 78.7 d
Shipping Pallet Weight: kg: 3,200 (3.2 tons); lb: 7,055
Air Pressure Required: 6 bar
Electrical Power Consumption: EU: 400 VAC; 3 Phases; 3 x 30 A; 50/60 Hz; US: 208 VAC; 3 Phases; 3 x 50 A; 60 Hz
Heat Dissipation: 3 kW (10,240 BTU/hr)
