Triad Bellows - Model SERIES-1 -Metal Bellows Capsules

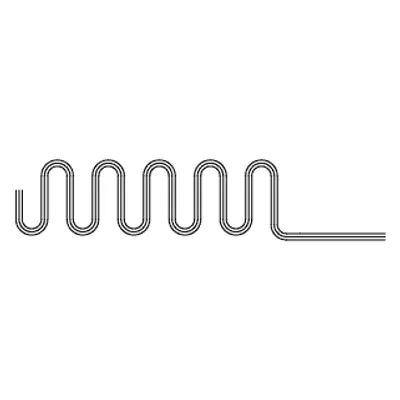

Triad Bellows Series-1 metal bellows are manufactured with heavier gauge T-321 s/s to achieve higher pressure ratings. The allowable movements shown are based on a minimum of 3000 non-concurrent cycles. For lower pressure applications a Series-2 expansion joint will provide increased movement capability. When a standard metal bellows is not the right fit we will design and build a custom metal bellows perfectly designed for your application at a standard price.
