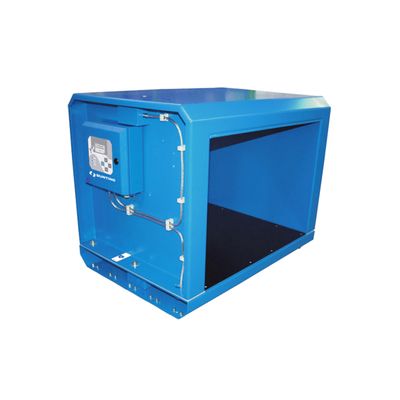

Bunting - Model meTRON 05D - Divisible Tunnel Type -Metal Detector

The divisible tunnel type meTRON 05 D Metal Detector provides high-sensitivity detection in rough industrial environments including encapsulated or loose tramp metal present in conveyed, vibratory chutes, and material-slide transported materials. Once detected, the problematic metal is removed either manually or automatically, preventing damage to processing equipment. The divisible design enables quick and easy installation in new and existing plants. The meTRON 05 D typically protects equipment including grinders, crushers, mills, chippers, and shredders.

As with other Metal Detectors, on detecting any tramp metal, a signal is generated in the search coil and transmitted to the control unit. This signal is processed and used to control other circuits, which include the interlocking of the belt conveyor, operating audible or visual alarms, belt interlocking, marking devices or automatic rejection mechanisms.

Typical tramp metal detected includes:

• Washers
• Nails
• Screws
• Nuts and bolts
• Wire
• Swarf

The meTRON 05 D is designed as a high-sensitivity metal detector for rough industrial applications. Typical applications include plastics, textiles, wood, mining and quarrying, and recycling.
