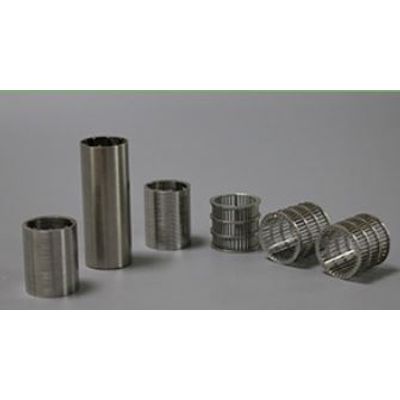

Pullner - Model PHSV Series -Metal Wedge Wire Mesh Filter
Metal wedge wire filter is manufactured by the V-shaped wire through a special welding technology welded on the ribs(vertical wire or support wire). It has high welding strength, uniform gap, strong corrosion resistance, big effective filtration area, high penetration efficiency, simple structure, etc.
Most popular related searches
wedge wire filter
wire mesh filter
wedge wire mesh
welded stainless steel tube
screen filter
filter cake
water treatment
activated carbon
mesh filter
stainless steel tube
Used for
Direct screening
- Filter support (sand, activated carbon, resin, catalyst, etc.)
- Screen slit width is 25pm {0.001 sl\]~) -25mm (1 in.), commonly used material is 201,202,304 (0Crl8Ni9), 321 (lCrl8Ni9Ti), 316L (00Crl7Nil4Mo2), 904L, but we II use other materials or special alloys for special needs.
- High mechanical strength, can withstand greater pressure
- Uniform aperture, form uniform filter cake, beneficial backwash regeneration
- Wedge-shaped filter gap, improve backwash regeneration capacity
- High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.
- Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect
- The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper maKing, environmental protection, metallurgy, food, sand. Decoration and other industries.
- Filter layer standard: Around-welded stainless steel sieve tube (SY5182-87);
- Outside diameter(mm): 25.4* 33* 37. 50. 57. 76. 89. 105. 130. 850; Special size can customized as customers`request.
