ProMinent DULCODOS - Model ULIA -Metering System Inline System Liquid

Metering system specifically designed for the batching of a fully activated liquid polymer solution

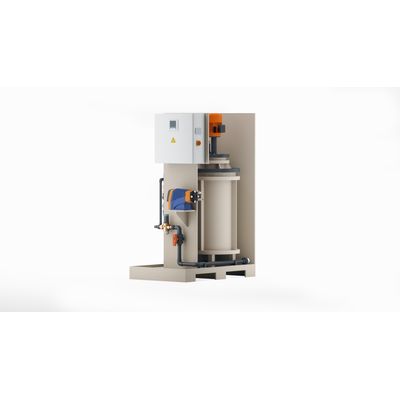

The compact inline preparation station DULCODOS ULIa features a special mixing chamber in which liquid polymer is added by peristaltic or metering pumps. Optimum mixing with water produces a fully activated polymer solution with a maturing time of approx. 15 min in the maturing chamber.

The concentration of the polymer solution can be simply adjusted on the touch panel.

Continuous polymer preparation output in l/h can be specified as an option. The polymer preparation system works reliably and conserves resources thanks to its optimum process control.

• Precise processing of liquid polymers (0.05 - 1.0 %) with a 50 % active ingredient

• Highly efficient mixing and maturing chamber for emulsions / dispersions and water

• Operator-managed input of the concentration with proportional metering

• Compact design with various installation options

• Optional operator-managed specification of the polymer preparation output in l/h

• System runs directly against a 4.5 bar back pressure, there is no need for a chemical transfer pump

• Sludge dewatering and sludge thickening

• Wastewater treatment (industry and local authorities)

• Drinking water treatment

• Proportional metering as standard

• 3 system types with different equipment can be selected:
  • basic - manual flow adjustment, manual flushing

  • medium - automatic flow control, manual flushing

  • comfort - automatic flow control, automatic flushing

• Integrated post dilution unit available as an option

• Choice of peristaltic or metering pumps:
  • Peristaltic pumps DFXa 0530 and 0565 for back pressures of up to max. 4.5 bar

  • Metering pumps gamma/ X with HV head up to 4.5 bar

  • Metering pumps Sigma up to 4.5 bar

• Compact controller Schneider Electric TM241 and touch panel STO735 4.3"
  • Optionally fitted with Ethernet/Modbus TCP

  • Optionally fitted with PROFIBUS®
