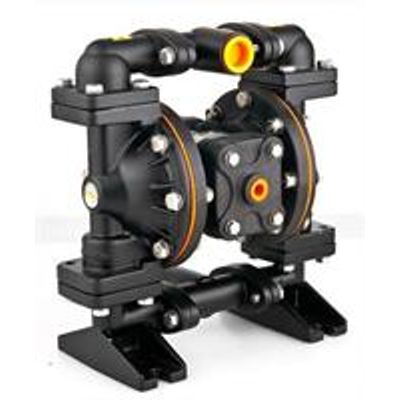

Vesta - Model VP05 -Methalic Body Diaphragm Pumps

Capacity 55 lt/dk. Intake/Dıscharge siz 3/4". Main Body Aluminium-Cast iron-Cast Stainless Steel-Sheet Metal(hygienic). Diaphragms Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Valvese Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Seats Santoprene-Teflon. Air İnlet Size 1/4". Solids-Handling 3mm. Suction Depth 6m. Operating Pressure (Max.) 7 bar. Delivery Height (Max.) 70 m. Operation Temperature -18 / + 1000C.
