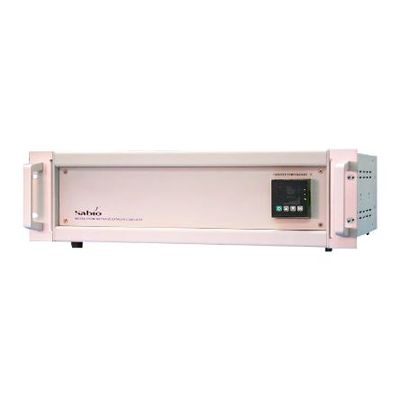

Sabio - Model 1000M -Methane Catalytic Oxidizer

The Model 1000M methane oxidizer meets industry requirements for thermal oxidation with increased oven reliability and stability, faster rise times, and higher converter efficiencies. Average converter efficiency is 95% or greater

The proprietary two-stage, multiple path tube and oven design enable the Model 1000M the ability to oxidize reactive species at relatively low temperatures Oven temperature is precisely maintained by a microprocessorbased temperature controller driving a high-capacity optically isolated triac control module. The dual display temperature controller uses pulse width modulation to regulate the heating cycle and minimize thermal noise from on/off cycling. A thermal cutoff switch works with the heating element to protect the electronic circuitry and oven from thermal overload conditions.

• Catalyst Recharge Kit
• Rack Mount Kit

• Temperature Controller: Microprocessor-based
• Features:
• Proportional heater control
• Digital display of set point
• Dimensions: 5.25" (13.3 cm) Hx 19" (48.3 cm) Wx 15" (38.1cm) D
• Weight: 18 lbs (8.2 kg)
• Power Requirements: 98-132 VAC (optional 196-264) 360 VA, 50/60 Hz
• Air Quality:
• CO < 5 ppb
• HC < 0.20 ppb
