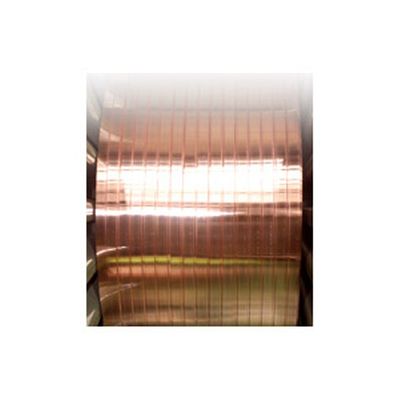

Metrod - Non-Insulated Strip

Copper content : 99.99 % Minimum. Oxygen content : 10 ppm Maximum. Copper grade : C10100 / OFE, C10200 / OF or equivalent. Size range :Width Thickness Cross sectional area. Width - Thickness aspect ratio :  5 – 52 mm 0.8 – 15 mm 400 mm2 Maximum 2:3 to 15:1. Condition : Soft or Semi Hard. Tolerance on diameter & Corner radius : As per BS EN 13601:2002 or equivalent. Electrical conductivity (IACS @ 20° C) : 100 % Minimum. Tensile strength (Soft) : 210 – 250 N/mm2. Proof stress (0.2%) (Soft) : 70 – 95 N/mm2. Elongation at fracture (50 mm gauge length) : 35 % Minimum. Surface condition : Clean, smooth and bright. Packaging : In wooden spools duly palletised. Sea worthy packing on wooden pallet. Coil weight : Up to 1.5 MT / spool. Special requirements : On mutual agreement. Tensile strength (Semi Hard) : 220 - 320 N/mm2. Proof stress (0.2%) (Semi Hard) : As per customers` request.
