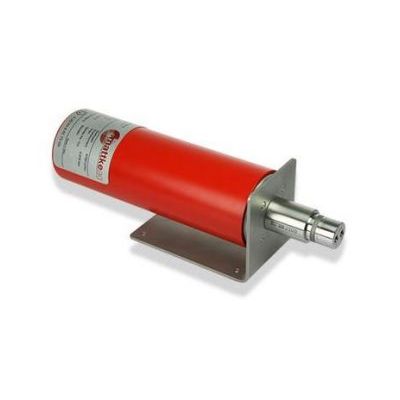

HNP-Mikrosysteme - Model MZR - 2509X2 -Micro Annular Gear Pump
The micro annular gear pump mzr-2509X2 Ex cover the flow range 0.0015 - 6 ml/min. The highly precise, low pulsation small volume dosage even of non-lubricating liquids or at high pressure, the compact design of the Ex-pumps, the broad viscosity range and the small dimensions are unique features of this pump series. The pumps are applied in the field of chemical and process technology and are suitable for both continuous delivery and discrete dosage of watery solutions, solvents, oil and other viscous liquids. Accessories extending the operating parameters of the device are available.
Most popular related searches
- Ex-certification ATEX conform with EU Directive 2014/34/EU
- Precision motor and sophisticated control ATEX DC-servomotor with integrated microcontroller
- High dosage precision precision CV < 1 % at low volumes
- Compact dimensions length < 356 mm, including Ex-motor
- Broad viscosity range methanol, solvents, adhesives, grease, gel
- Low pulsation delivery, low shear stress rotary micro annular gear technology
- Flow rate: 0.0015 - 6 ml/min
- Smallest dosage volume: 0.25 µl
- Displacement volume: 1.5 µl
- Differential pressure range: 0 – 5 bar (73 psi)
- Maximum inlet pressure: 0 - 5 bar (73 psi), max. 10 bar * (145 psi *)
- Ambient temperature range: 0 ... +40 (+32 ... +104 °F)°C
- Liquid temperature range: -5 ... +40 °C (+23 ... +104 °F)
- Viscosity range: 0.3 - 5,000 mPas
- Precision CV: < 1% (Coefficient of variation CV)
- Ex-certification: CE Ex II 2G Ex h IIC T4 Gb
- Place of installation: Ex-area zone 1, 2
- Wetted parts: stainless steel 316L (1.4404, 1.4435), Ni-based tungsten carbide; shaft seal: graphite-reinforced PTFE, 316L; static seals: FPM, optional: EPDM, FFPM
- Motor: BLDC motor with integrated motion controller, 24 V DC, 2 A, 53 W, analog hall sensors (3000 pulses / revolution)
- Velocity range: 1 - 4,000 rpm
- Cable length: 10 m
- Weight: approx. 3,200 g
Remarks * with optional fluidic seal module, Customized solutions on request.
