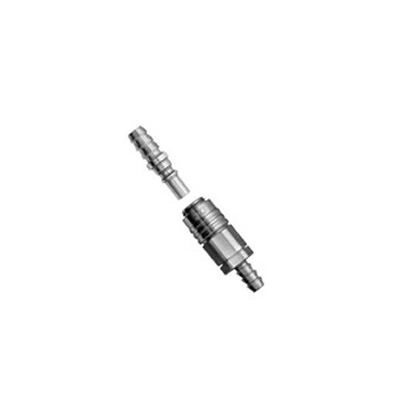

Micro Cupla - Low Pressure Quick Connect Couplings

Even though the valve is built in the socket, the sleeve outer diameter is confined to 9.5mm.

• Push-to-connect design.
• Just push in and the tube mount is completed.
• Compact design for piping in narrow spaces.
• Plated brass and stainless steel bodies are available for excellent corrosion resistance.
• Available in various end configurations to satisfy a wide range of pneumatic applications.

Note: Fluid will flow out from the plug when disconnected because of no valve inside the plug. If the fluid is water and you require a valve in the plug, ask for semi-standard Little Cupla or Compact Cupla series.

• Applicable Fluids: Air / Water
• Working Pressure: 10 bar
• Valve Structure: One-way shut-off
• Body Material: Brass / Stainless steel / Others
• Seal Material: NBR / FKM
• Size: 1/8" / 3mm / 4mm/ Others
