Nitto Kohki Europe Gmbh products
Pumps & Air Compressors- AC Pumps

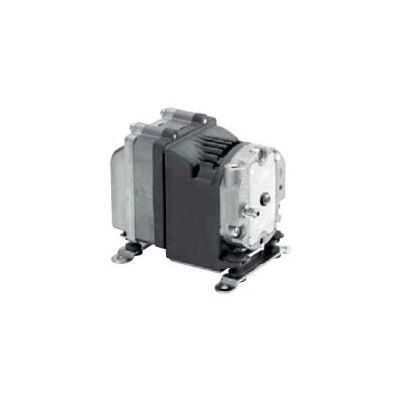

Nitto - Model AC 0102 - Low Pressure AC Linear Piston Compressors
Rated Pressure: 0.2 bar. Rated Airflow: 5 l/min. Rated Voltage: 230 V. 120 V. Maximum Pressure: 0.4 bar. Power Consumption: 14 W 14 W. Rated Frequency: 50 Hz 60 Hz. Life Expectancy: 3.000 h. Outlet: 6 mm O.D. hose nipple. Duty Cycle: Continuous. Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450. Mounting Dimensions (L x W): 48 x 62 mm. Gross Weight: 0.7 kg. Leadwire Length: 200 mm.

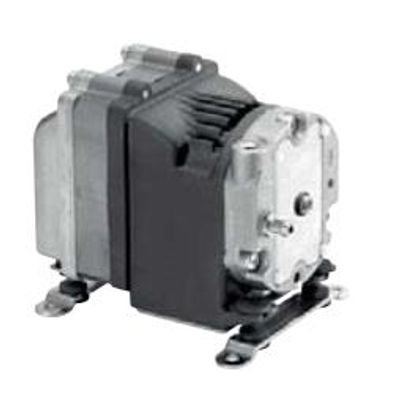

Nitto - Model AC 0201A - Low Pressure AC Linear Piston Compressors
Rated Pressure: 0.1 bar. Rated Airflow: 20 l/min. Rated Voltage: 230 V, 120 V. Maximum Pressure: 0.2 bar. Power Consumption: 19 W, 19 W. Rated Frequency: 50 Hz, 60 Hz. Life Expectancy: 6.000 h. Outlet: ISO Rc 1/4 (female threaded). Duty Cycle: Continuous. Coil Insulation Class: E or its equivalent (JETL) and A for UL-1450. Mounting Dimensions (L x W): 73 x 88 mm. Gross Weight: 1.5 kg. Leadwire Length: 200 mm.
Pumps & Air Compressors- DC Pumps

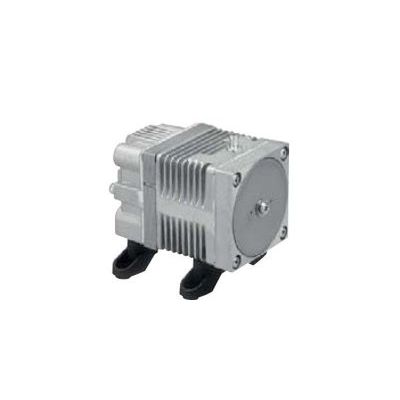

Nitto - Model DAH 102 - DC Linear Piston Compressors
Rated Pressure: 0.2 bar. Rated Airflow: 5 l/min. Rated Voltage: 12 V 24 V. Maximum Pressure: 0.5 bar. Current (Mean Value): 0.81 A 0.40 A. Live Expectancy: 10.000 h. Outlet: 6 mm O.D. hose barb. Duty Cycle: Continuous. Coil Insulation Class: A or its equivalent (JETL). Mounting Dimensions (L x W): 76 x 70 mm. Weight: 0.91 kg. Leadwire Length: 300 mm .

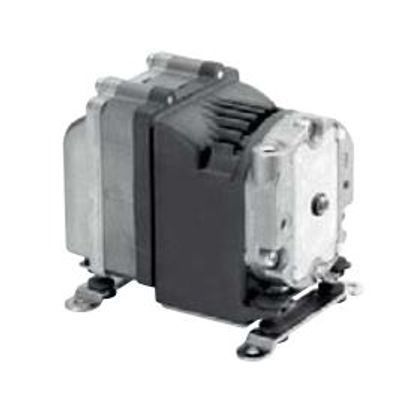

Nitto - Model DAH 105 - DC Linear Piston Compressors
Rated Pressure: 0.5 bar. Rated Airflow: 2.5 l/min .

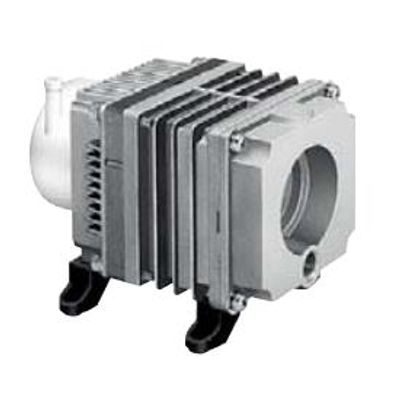

Nitto - Model DAH 110 - DC Linear Piston Compressors
Rated Pressure: 1.0 bar. Rated Airflow: 1.0 l/min .
Quick Connect Couplings -Low Pressure
Micro Cupla - Low Pressure Quick Connect Couplings
Compact, lightweight Cuplas with only 9.5mm outer diameter. Push-to-connect operation. Tube Fitter type for even easier tube insertion.
Quick Connect Couplings -Medium Pressure
Cupla - Model TSP - Medium Pressure Low Pressure Quick Connect Couplings
Valveless structure suits high viscosity fluids! Various body materials, sizes and end configurations. Braided hose connection types are newly added.
Power & Machine Tools - Pneumatic Tools
Nitto - Model JT-16 - Needle Scalers
For removing weld spatter, paint, rust and other debris from most surfaces.
Nitto - Model AJC-16 - Needle Scalers
Never skip a blow, cleans and descales all jobs fast. Gets into extremely restricted areas... An asset in any industry...de-slagging, de-sputtering welds, cleaning, castings, brick, stonework, and other materials. Jet Chisel is a prime pneumatic perfomer in each of these and other tough job areas. Maximum performance in a light-weight, minimumsize air tool, Jet Chisel delivers years of trouble-free, efficient operation. And it`s a tool that gets all the way down to the surface of matters. Quick, Jet Chisel needles adjust to any surface contour automatically. They get deep into corners, all the way into uneven surfaces, all types of curvatures making it a tool no shop should be without. It`s an equally efficient time-saver in ship-board applications, too.
