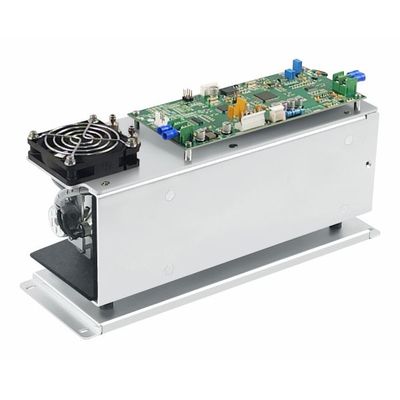

Cubic Instruments - Model Gasboard-2105 -Micro Flow NDIR Gas Bench
Gasboard 2105 Micro flow NDIR gas bench adopt independent intellectual property rights and international PCT patent (PCT/CN2018100767) dual‐chamber sensor technology. The gas chamber is composed of the measured gas chamber and the reference gas chamber. The Gasboard‐2105 serials use a dual chamber structure and special filters to solve environmental temperature instability and aging of electronic components. With improved accuracy, stability and anti‐interference, it is suitable for low range vehicle exhaust emission detection and environmental monitoring.Most popular related searches
NDIR gas
vehicle emissions monitoring
exhaust emissions monitoring
modular gas analyzer
analysis system integrator
vehicle emissions
NDIR
sensor system
emissions analysis system
analysis system
- One sensor bench measure one gas
- Patent (PCT/CN2018100767) dual‐chamber sensor with measured gas and the reference gas for high accuracy
- Except SO2 and NO, it also can measure CO, CO2,CH4 and SF6
- Automatic temperature compensation
- Built-in moisture adjustment device, eliminate the interference of H2O
- Measurement range can be customized
- Good stability and long life
- Range：
o CO: 0〜500/1000/2000/5000ppm, CO2:0〜500/5000ppm
o SO2: 0〜200/5000ppm, NO: 0〜200/5000ppm, CH4: 0 〜1000/5000ppm
o PS: Components and ranges are can be customized - Accuracy：≤±1%F.S.
- Repeatability：±1%
- Zero/span drift: ＜2%F.S.
- Output: RS232
- Power supply:
o Mainboard power supply：±12VDC/24W，5VDC/10W
o Constant temperature heating power supply：100~240VAC，80W
- Combustion Optimization.
- IAQ Monitoring.
- Personal Safety Detection.
- TOC Analytic.
- Industrial Processing Control.
- Instrument integration.
- Pollution Emission Monitoring.
- Gas Analyzer / System Integration.
