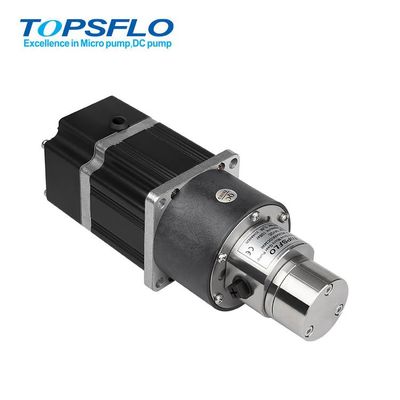

TOPSFLO - Model MG200XK-DC24WI -Micro Gear Pump for Medical

Micro Gear Pump MG200 Series (internal gear pumps) 1. Using magnetic coupling drive without leakage, 316 L stainless steel shell, PEEK materials gear, PTFE sealing materials,use brushless DC motor combination with smaller size, can with built-in limit pressure valve, the flow rate can be realized adjustment without steps. 2. Pump can be used in the -0.1 Mpa～2Mpa closed systems; the rated output pressure is 0.5 Mpa (medium: water), the maximum output pressure is 1.4 Mpa , output flow rate with 20～3500 ml / min. Micro Gear Pump Features: 1.High differential pressure capability,small size 2.Excellent suction capability 3.Smooth, Pulseless Delivery 4.Easy to Service Chemical resistance 5.DC Motor drive 6.Stable fluid stream ideal for precision control and analytical applications 7.Excellent for lubrication and recirculation 8.Repeatable and predictable flowrate 9.Well suited to pumping hazardous or hygeinic fluids 10.Brushless motor Longer life 12.Safer fluid containment

TOPSFLO - Model MG200XK-DC24WI -Micro Gear Pump for Medical

Main Application
