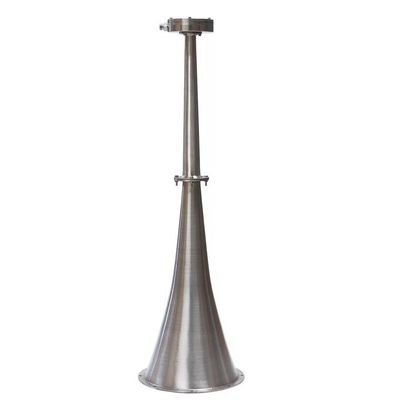

Prima - Model PAS 120 -Mid-Size Acoustic Cleaner
A mid-size Acoustic Cleaner with a fundamental frequency of 120Hz this model is particularly suited to boiler applications and to mixing vessels and blending silos where complete removal of material is required to prevent cross contamination or to ensure optimum efficiency.
Most popular related searches
acoustic cleaner
sound pressure level
mixing vessel
process vessel
mixer heat exchanger
cross contamination prevention
cyclone filter
filter dryer
silo filter
acoustic ranging
This two piece model offers a wide variety of mounting options and is ideally suited to applications in mid – large size:
- hoppers
- bins
- dryers
- ductwork
- filters
- cyclones
- silos
- boilers
- economizers
- storage & process vessels
- ID fans
- mixers
- blenders
- heat exchangers
- cracking towers
- Frequency: 120 Hz
- Sound Pressure Level 150 dB
- Air Pressure Requirements 4.8 – 6.2 bar 70 – 90 psi 480 – 620 kPa
- Air Consumption: 21.25 l/min 42/50 SCFM when sounding
- Solid Piping 25mm / 1 inch
- Flexible Piping 20mm / 0.75 inch
- Overall Height 1365mm
