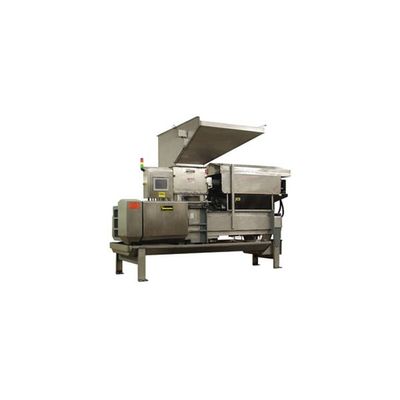

Harmony ExtractPack - Model Plus -Mid-sized Horizontal Liquid Extraction Baler

• Bale Size: 30”x 18.5” x 30”
• Bale Wt. (Alum): ≤ 220 lbs.
• Bale Wt. (PET): ≤ 240 lbs.
• Mid-Sized Beverage Baler

The ExtractPack Plus (PERF-SSHB Gen 1) mid-sized horizontal liquid extraction baler features a host of standard and cutting-edge technology along with extremely high pressure crushing capability to extract and bale for the most demanding conditions.  This innovative perforator is ideal for breweries, bottling facilities, and anywhere out-of-date product needs to be destroyed.

Here are just a few of the many benefits offered by our ExtractPack Plus Mid-Sized Horizontal Liquid Extraction Baler:

• Heavy duty stainless steel baling chamber, platen and charge opening
• 207 gallon stainless steel liquid reservoir assembly with custom 2PC straining screen system to catch debris.
• Custom designed stainless steel splash guards, safety covers, and power unit weather cover that have a peaked design to allow for liquid run off.
• All electrical enclosures are stainless steel NEMA 4 rated and all fittings and conduit are non corrosive plastic water tight rated.
• All electrical items are OEM off-the-shelf by design so not waiting around for special orders on replacement items if needed.
• Forty point I/O MICRO LOGIX1200 PLC from ALLEN BRADLEY with expandable I/O capability.
• Water proof ultrasonic sensors to monitor charge chamber filling and cycle start operations. No troublesome photo eyes to clean or service.
• Water proof magnetically coded safety switches to monitor all gates and doors.
• Water proof proximity switches to monitor ram locations. No limits switch arms or rollers to keep readjusting.

• Baler Weight: 10,013 lbs (4,542 kg)
• Tipper Weight: 3,360 lbs (1,524 kg)
• System Total Force: 107,756 lbs.
• Platen Total Force: 194 lbs.
• Platen Penetration: Full
• Platen Cycle Time: 35 to 45 seconds
• System Pressure (main): 2,800 psi
• System Pressure (secondary): 2,500 psi
• Pump (main): 20 gpm, Variable Piston
• Pump (secondary): 3.7gpm, Fixed Valve
• Hydraulic Circuit (main): Regenerative Variable Speed
• Hydraulic Circuit (secondary): Fixed Speed
• Total System Volume: 72 gallons, 273 liters
• Oil Reservoir Volume: 59 gallons, 223 liters
• Platen Cylinder: ( B x R x S ) 7” x 4” x 54” (178 mm x 102 mm x 1,372 mm)
• Latch Cylinder: ( B x R x S ) 3” x 1.75” x 6” (76 mm x 44.5 mm x 152 mm)
• Tipper Cylinder: ( B x R x S ) 3” x 1.5” x 20” (76 mm x 38 mm x 508 mm)
• Tri-Volt Electrical System:  20 HP 208/230, 460, 575V, 3 PH
• AutoLube Hydraulic System:  2 Liter
• Oil Cooler:  1/2 HP

Dimensions

• Bale Dimensions:30” x 18.5” x 30”  (762 mm x 470 mm x 762 mm)
• Estimated Bale Weights:
  • Aluminum: 220 lbs (100 kg)
  • PET: 240 lbs (109 kg)
• Bale Volume: 9.5 cu. ft. (.27 cu. m)
• Baler Dimensions:  160”L X 76.75”W X 176.75H (4,064 mm x 1,950 mm x 4,490 mm)
• Baler Operating Area: 135 sq. ft. (12.54 sq. m)
• Tipper Dimensions: 118” L X 103”W X 139” H (2,997 mm x 2,616 mm x 3,531 mm)
• Tipper Operating Area: 60 sq. ft. (5.57 sq. m)

• Bottlers, Distributors, Breweries, Caterers, and More!
