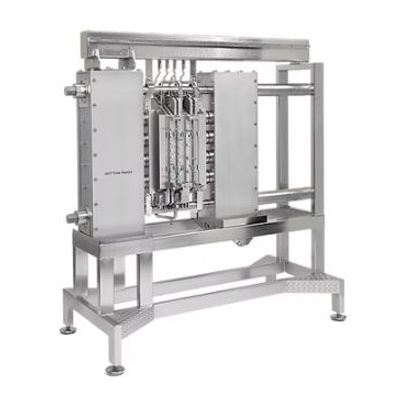

Ehrfeld ART - Model PR37 and PR49 -Millistructured Plate Reactors
Our ART® reactors are millistructured plate reactors and they are highly innovative as they are characterized by excellent heat transfer, optimal residence time distribution and faster mixing compared to conventional technology. As a result, this leads to a significant process intensification in terms of yield, costs and safety. ART® reactors can be completely dismantled, which simplifies their cleaning. Thanks to their robust design, metallic material and modular set-up, these compact devices are ideally suited for a wide range of reactions – from the research and development all the way up to production. In addition, they enable effective process control with process analysis technology, which can be integrated with ease.
No matter in at which phase of your process you start – process optimization or production – you will benefit from a great number of advantages:
- Excellent heat transfer
- Higher safety due to small reaction volumes in continuous flow
- Easy cleaning and access as the reactor can be completely dismantled
- Metal materials of construction (SS 316L/Hastelloy® C22)
- Modular design for a wide range of reactions - also suitable for many suspensions (low solid content)
- Different temperature zones in one apparatus
- Serial and parallel operation
- Ports for multi-injection, multi-stage operation and sampling available
- Effective process control with process analysis technology (PAT), which is very easy to integrate
- Flexible product changes through use in Multipurpose systems
- Robust production technology
