AMI - Mineral Injection Systems

FromApplied Membranes, Inc.

SHARE

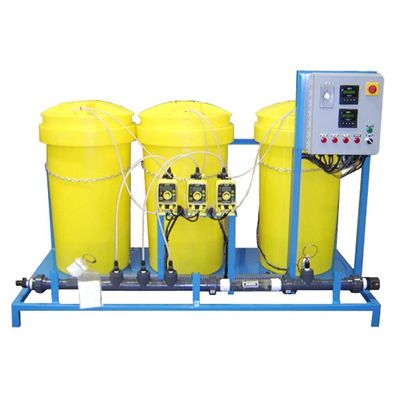

Applied Membranes mineral injection systems are designed to inject minerals in to drinking water. One to four minerals can be injected at one time. The systems are designed for flow rates from 1 to 30 gallons per minute. Larger flows are possible by adding the increased line size option below. A typical system would inject three minerals: calcium, potassium and magnesium. The injection systems meet all IBWA, FDA and health code requirements.

Most popular related searches

inline static mixer

water treatment system

liquid metering system

membrane water treatment

Use as RO Post-Treatment to Improve Flavor of Drinking Water
Over 30 years of experience is reflected in our quality
Compact, Heavy Duty, Powder Coated Frame
Proven components used throughout the system
Conservatively engineered for reliable long term performance
Factory tested to ensure trouble-free operation

Standard Equipment: Typical equipment included is listed below

Skid mounted on a heavy duty powder coated frame
Adjustable Liquid metering pumps
Solution Mixers
Solution Tanks, Food-Grade Polyethylene
In-Line static mixer
TDS monitor with set-point and alarm
Schedule 80 PVC and Polyethylene Piping
Connect directly into main piping, 1.5” to 2” standard
NEMA 4 Electrical Enclosure
Low level tank safe-guard

Optional Equipment

2.5” to 4” Line Size for higher flows
pH monitoring
Crating

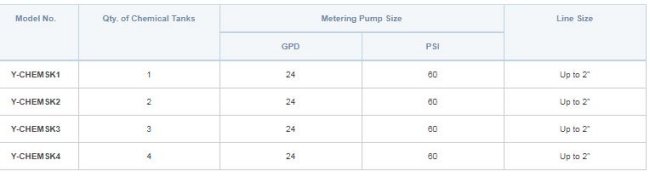

Voltage/ Ordering Information

Please add our voltage codes to the end of the model number when ordering.
Example: Y-CHEMSK3-116 = 110v / 1 ph / 60 hz.

Voltage Codes:

116 = 110v, 1ph, 60hz
216 = 220/230v, 1ph, 60hz
215 = 220/230v, 1ph, 50hz
Three Phase Not Available

Skid mounted on a heavy duty powder coated frame
Adjustable Liquid metering pumps
Solution Mixers
Solution Tanks, Food-Grade Polyethylene
In-Line static mixer
TDS monitor with set-point and alarm
Schedule 80 PVC and Polyethylene Piping
Connect directly into main piping, 1.5” to 2” standard
NEMA 4 Electrical Enclosure
Low level tank safe-guard

AMI Mineral Injection Water Treatment Systems are Designed to inject minerals such as calcium, potassium and magnesium into drinking water.

Optional Equipment for Mineral Injection Systems

2.5" to 4" Line Size for Higher Flows
pH Monitoring
Crating
