i-Zone - Mini Control Panel
Our 4-zone Control Panel is a cost effective means of monitoring up to four zones of water leak detection, using cable, point, float, or overflow detectors. Panel outputs include volt-free contacts, a Beacon output, and a 12v Expansion port for relay connection.

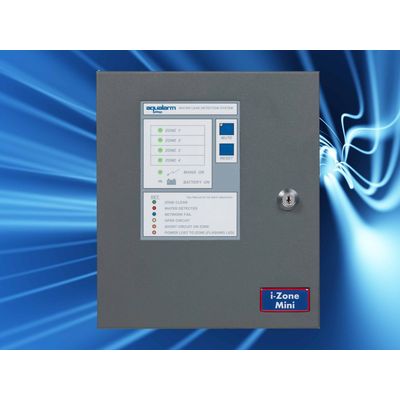

The i-Zone Mini Control Panel is suitable for wall mounting. It is constructed from mild steel, and has a durable powder coated finish. It features an LED display which can monitor up to four water detectors, either as point, cable, overflow, or float detection. Each zone LED will illuminate green if a detector is connected, and clear of alarms. In an alarm condition the LED will change colour to indicate the type of alarm being received, and a 70dB audible alarm will activate.
Panel LED’s also indicate if the panel is running on Mains or Battery Features of the Control Panel include a MUTE, and RESET button. A maximum of 100/m of network cable can be connected per zone.
The system is fitted with 1 x sealed rechargeable lead acid battery to support the system in a mains power down/switch over period. When power/mains are reinstated the system will automatically restart. For remote signalling the Control Panel is supplied with the following outputs as standard: - 12v powered contact to activate a sounder/beacon, a Common Detector Alarm, Mains Fail, and B
