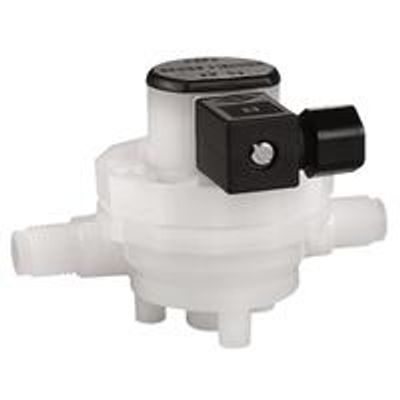

GF Signet - Model 2507 -Mini Flow Sensor
The Signet 2507 Mini Flow Sensor contains a free-running rotor that is driven by the fluid flow. Within the given measurement range, the rotational speed of the rotor is proportional to the fluid flow rate.Magnets built into the rotor trigger an electronic switch in the top of the sensor creating a square-wave output. Both opaque and transparent fluids can be measured from 0.2 to 20.0 centistokes.
Most popular related searches
flow sensor
chemical wet bench
fluid dispenser
RoHS compliance
chemical dosing
RoHS
fluid flow monitoring
fluid measurement
laboratory benching
laboratory bench
- Installs into pipe sizes: G 1/4 in, 1/4 NPT
- Operating range: 400 to 12,000 ml/m (0.1 to 3.2 U.S. gpm)
- Max Pressure rating: 5.5 bar 24 °C, 80 psi @ 75 °F
- Power source: 5 to 24V DC @ 10mA
- Compatibility: 8900, 9900, 9900-1BC, 9950
- Advantages:
- Compact Assembly
- Operating range 400 to 12,000 ml/m (0.1 to 3.2 U.S. gpm)
- Simple Installation
- PVDF Construction
- Standard cable 7.6m (25ft)
- Detachable Signal Connector
- Fields of Application:
- Fluid Dispensing
- Laboratory and Clinical Wet Benches
- Chemical Dosing
- Batch Processes
- Standards:
- CE
- FCC
- China RoHS
- RoHS Compliant
