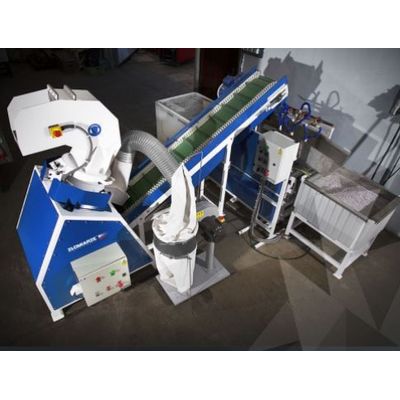

TORNADO and GOLD RIVER series - Mini Recycling Line 50kg/h for Scrap Recycling
The Mini Recycling Line, with a performance capacity of 50kg/h, is a sophisticated set of machinery tailored for the scrap recycling process. Integrating shredding and separation techniques, it features the TORNADO series mills, engineered for rapid processing of feed materials with optimized chamber time and sieve placement. This ensures a consistent material fraction through balanced rotor RPM. Additionally, the GOLD RIVER series introduces advanced water systems with adjustable pressure in wet separators, facilitating precise separation of challenging materials. The system's design incorporates a separation mat on a vibration table, allowing for the meticulous separation of copper veins as thin as 15 microns. The setup prioritizes the purity and clarity of plastic waste while ensuring durability through robust Polish manufacturing standards. These components adhere to rigorous durability requirements, reinforcing long-term operational integrity. The line is crafted from carefully selected materials that guarantee longevity and reliability in recycling operations.Mini line consist of:
- 11kW Grinding Mill - Tornado 320
- Compact Dust collector
- Transport Conveyor
- Wet Separator - Gold River 300/1250
Technical Specification:
- Complete Set Power - 13kW
- Supply - 400V; 50Hz
- Performance - 50kg/h (this is a real value, checked on basic materials)
- Dimensions - 3500x3600x1950mm
- Weight - 950kg
Spare parts included.
The Mini Line is a high quality set of devices designed for the recycling process. Shredding and separation are essentials in this business, that’s why Mills from TORNADO series was designed to rapid reaction on feeding materials with being in a chamber for short time, suitable sieves placement and balanced cutting rotor RPM provide uniform material fraction. Innovated implementation of water system with adjustable pressure in the Wet Separators GOLD RIVER series provides highly accurate separation of difficult materials.
The separation mat placed on vibration table in combination with several other parameters is another significant solution and allows to separate single copper vein with a thickness of 15 microns [µM.]. While maintaining excellent plastic waste clarity and purity.
Solid Polish workmanship supported by experience ensures long life. The carefully selected materials and components that are used to manufacture our products shall comply with the relevant durability requirements.
Recycable resources:
- Any kind of Aluminium cables.
- Automotive cables with adhesive tape
- Cords and network cables
- Coax cables, Christmas lights
- Copper cables lined with gel or silicone
- Winding coil of a thickness 15 microns, contaminated with adhesive paper or plastic
