SchulzEP - Model A1 -Mini Water Sampler
FromSchulzEP

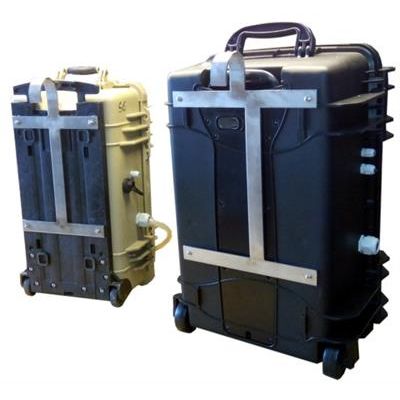

Samplers differ only in size and type of sample. Larger black sampler A1 uses as sample book canister of 10 liters. Smaller sampler uses sand color sample book barrel shape with a large opening and a size 6 liters.
Most popular related searches
water sampling
portable water sampling
peristaltic sampler
wheel weighing
hose pumping
hose pump
level sensor
sampling supply
manhole
integrity monitoring
- Easy to transport thanks to the release handle and integrated wheels
- weighs only 12.5 kg (without water, battery included)
- very simple operation
- the integrated level sensor is sampled in the sample case to prevent it overflowing
- Easy installation on the railing and into the manhole using a crane hook at the rear of the sampler
- Outdoor indication via a green LED
Portable peristaltic sampler A1 and A1 mini
Samplers A1 and A1 mini portable water sampler for the collection of mixed samples, depending on the time and volume of the C version and the instantaneous flow (allow sampling type A, B and C according to the Government).
Samplers provide easy transport wheels and retractable handles. Thanks to the stainless steel hook at the rear of their samplers installed on the withdrawal site very easy - hanging on a railing on a footrest or manholes.
The control unit is very simple to use. It allows to set using three switches, delayed start, number of samples and the frequency (time spacing between samples). After turning on the control unit will immediately sampler to take samples according to the settings.
Description samplers:
- automatic odběrák samples in plastic container
- peristaltic principle of sampling
- norprenová hose pump
- Plastic housing PP
- bottle sampler A1 with 10 l PE canister at A1 mini keg 6 liters PE
- sucking height recommended 5 m, maximum possible 7 m
- stainless steel suction filter (basket)
- Microprocessor control system in time, volume and version of A1-C with a flow volume change of the sample
- supply 12 V, 7 Ah (perhaps also the operation of the network)
- before and after each sampling purge the entire tract
- standard length 5 m suction hose (optional longer)
- weight 12.5 kg (without water, a battery)
- Operating temperature 0 to 40 ° C
- Outdoor indication via a green LED
Accessories supplies sampler A1:
-
Canister closure 10 ls
-
one battery
-
suction hose 5 ms stainless steel filter
-
Charger 230 V 50 Hz
