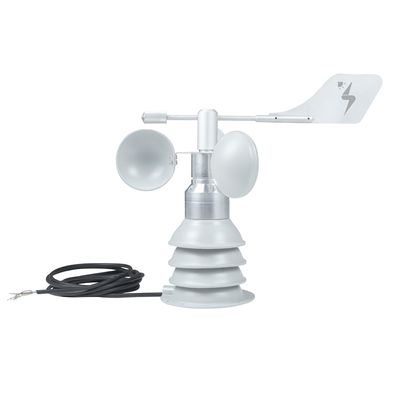

SEVEN - Model 3S-RH&AT-WS&D -Mini Weather Station
The SEVEN Mini Weather Station is designed specifically for monitoring PV facilities, providing an easy-to-install and durable solution suitable for field conditions. It can read the following data: 1- Horizontal Wind Speed 2- Horizontal Wind Direction 3- Ambient Temperature 4- Relative Humidity The aluminum parts of the sensor are coated with anodized protection, and the plastic parts are made from ABS for enhanced durability. SEVEN Mini Weather Station is available in three models to meet varying customer needs: 3S-WS&D: Measures Wind Speed and Direction 3S-AT-WS&D: Measures Wind Speed, Direction, and Ambient Temperature 3S-RH&AT-WS&D: Measures Wind Speed, Direction, Ambient Temperature, and Relative HumidityMost popular related searches
mini weather station
weather station
wind speed monitoring
measurement wind direction
measure wind direction
wind monitoring
cup anemometer
aluminum anodizing
anemometer measurement
anemometer
- Item Code: 3S-RH&AT-WS&D
- Measured Data: Wind Speed, Wind Direction, Ambient Temperature, Relative Humidity
- Standard: Complies with IEC 61724-1:2021
- Operating Temperature Range: -40°C … +85°C
- Operating Humidity Range: 0 … 100 %RH
- Sensor Body Material: Anodized Aluminum & ABS
- Mounting Method: Ground Mounting
- Dimensions: 280x320x320 mm
- Weight: 640 g
Wind Speed Sensor
- Sensor Type: Cup Star Anemometer (Reed Relay)
- Measurement Range: 0.9 … 40 m/s
- Accuracy: ± 0.5 m/s or ±10% of the measured value
- Resolution: 0.1 m/s
- Threshold: 0.9 m/s
Wind Direction Sensor
- Sensor Type: Hall Effect Position Sensor
- Measurement Range: 0° … 359.9°
- Accuracy: ±1°
- Resolution: 0.1°
Ambient Temperature Sensor
- Sensor Type: Capacitive
- Measurement Range: -40°C … +85°C
- Accuracy: ± 0.1 °C (5…60 °C) @ 20…80 % RH
- Resolution: 0.1°C
Relative Humidity Sensor
- Sensor Type: Capacitive
- Measurement Range: 0% … 100%
- Accuracy: ± 1 % RH (20…70 %) @ 25 °C
- Resolution: 0,01
