Mini Weir Skimmers

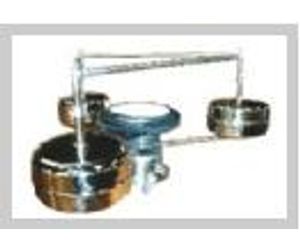

A weir skimmer is used to remove oil from the water. A weir skimmer has three connected floats supporting a central shallow dish. The top of the dish sits 10mm - 20mm below the surface of the water. Upon starting the skimmer the water in the dish is sucked away by a pump. As the dish empties the surface oil and some water, if the oil is not thicker than 10mm - 20mm, falls into the dish and is pumped to shore. A special floating ring joined to the top of the dish with a rubber skirt that concertinas, will automatically re-adjust the skimming depth to 10mm - 20mm in choppy water. Global weir skimmers range is capacity from 5 tonne/hour to 120 tonne/hour. The larger capacity skimmers (40 tonne/hour +) have hydraulic driven on-board pumps with the smaller skimmers having external suction pumps.

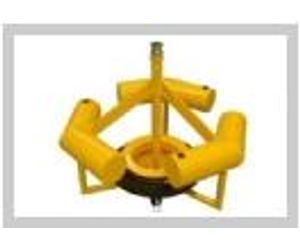

Application: Global Weir Skimmers are a floating, suction type skimmer for removing oils and fuels from the water surface. Designed to be used in ponds, lakes, dams, rivers, harbours and marinas. These tough skimmers use a self-adjusting weir that floats and finds the oil/water interface and permits the surface layer (oil) to be drawn over the weir and into the...
For more information Click Here.
Application: Global Weir Skimmers are a floating, suction type skimmer for removing oils and fuels from the water surface. Designed to be used in ponds, lakes, dams, rivers, harbours and marinas as well as corrosive and aggressive environments associated with mining and mineral processing. These tough skimmers use a self-adjusting weir...
For more information Click Here.

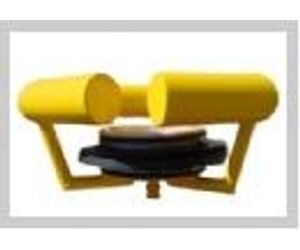

Application: Ideal for confined spaces, these skimmers use a self-adjusting weir that floats and finds the oil/water interface, permitting the oil layer to flow over the weir and into the bowl. Use with pumps feeding oil/ water separators, waste water treatment plants as well as oil spill recovery and other environmental or industrial applications. Compact size - ideal...
For more information Click Here.
Application: Ideal for confined spaces, these skimmers use a self-adjusting weir that floats and finds the oil/water interface, permitting the oil layer to flow over the weir and into the bowl. Use with pumps feeding oil/ water separators, waste water treatment plants as well as oil spill recovery and other environmental or industrial applications. Top suction...
