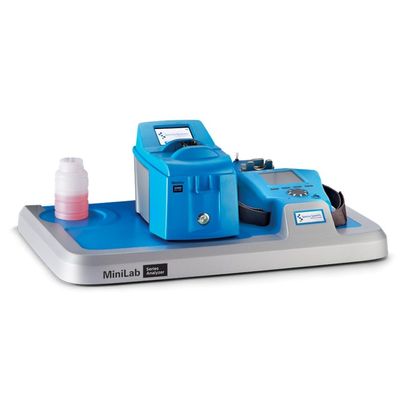

MiniLab - Model 23 -On-Site Oil Analyzer

SHARE

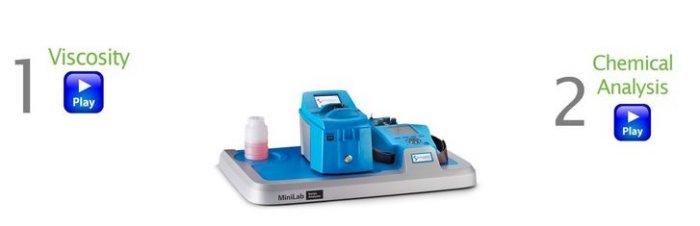

Oil analysis provides early indications of equipment wear and identifies the root causes of corrosion. On-site oil analysis eliminates the wait associated with sending samples off-site and enables immediate decision making. With two simple tests, the MiniLab 23 delivers on-site oil analysis, providing immediate actionable results, saving time and reducing costs.

Most popular related searches
on-site oil analysis
on-site oil analyzer
oil analysis
oil analysis test
lubricant system
pipette tip
sample preparation
water monitoring
oil analyzer
laboratory homogenizer

Highlights of this system include:

  • One product, delivering lab-quality analysis outside of the lab
  • Simplified workflow for the non-expert user, no chemist required
  • Simplified operation, data reporting and report interpretation via the TruVu 360 Diagnostic Sets with recommended actions.

The MiniLab 23 provides oil condition information including viscosity, chemistry and water in oil. This capability is the foundation of an oil analysis program.

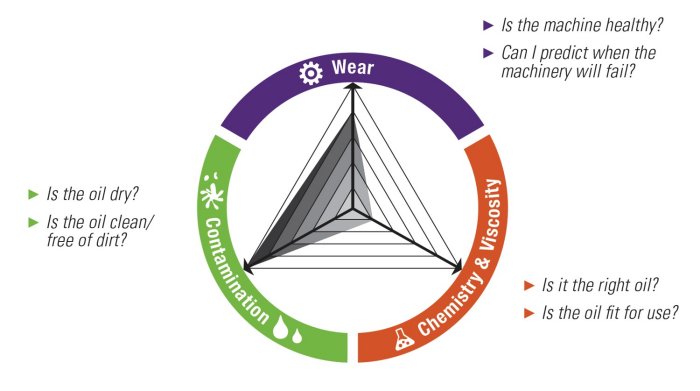

The TriVector™ is a simple representation of the integrity of the lubrication system and the health of the machine itself. The Trivector indicates the degree of health in each vector.  In order to understand the Trivector condition, one must measure the key physical and chemical parameters of the oil.

The following questions can be answered:

The Minilab 23 uses the TruVu 360 Enterprise Fluid Intelligence software which includes an Asset Management database and a reference oil database which can be expanded by the end user.

It provides a standard sample trend reports and Diagnostic Sets with alarm limit templates, diagnostics, and recommended actions. It can support automatic email distribution of reports.

Color-coded Trivector reports provide a clear snapshot of machinery health by identifying parameters that are outside normal limits.

The MiniLab 23 is ideal for a wide range of industries such as:

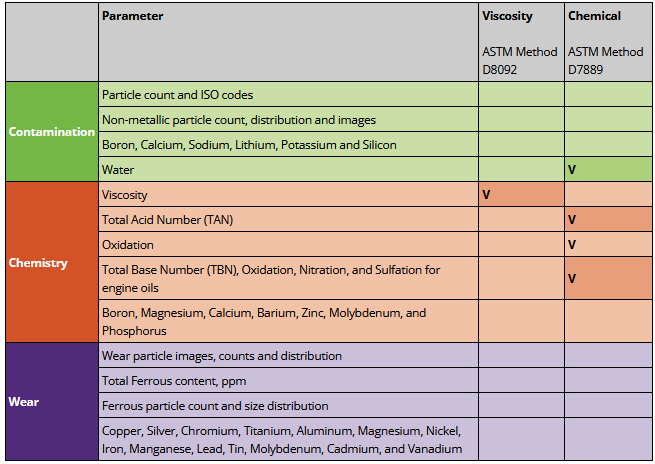

The most common oil analysis tests and typical alarm limits for several component types are shown below.  Component manufacturers establish alarm limits for their equipment for specified parameters.

Sample Preparation – 1 Simple Step

  1. Homogenize the sample for better water measurement

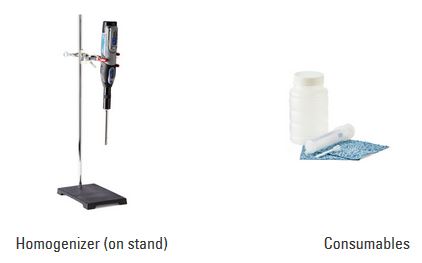

MiniLab 23 consumables: Cleaning pad, pipette tips, small bottles for water preparation.
Spectro Scientific consumables ensure high accuracy and repeatability

MiniLab 23

  • 35 cm x 50 cm x 53 cm (13.8” x 19.7” x 21”)

Homogenizer and stand

  • 68 cm x 15 cm x 22 cm (27” x 6” x 9”)
