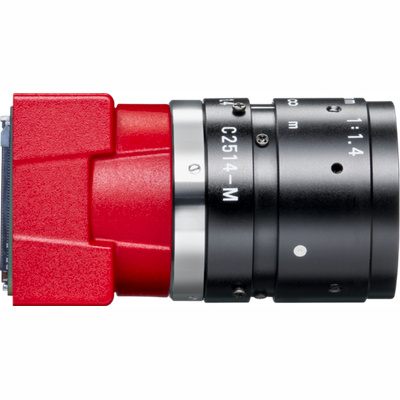

Allied Vision - Model Alvium 1500 C-120 -MIPI CSI-2 Camera Module
The Alvium 1500 C-120 is a high-performance MIPI CSI-2 camera module designed for embedded vision applications. It integrates ON Semiconductor's AR0135CS CMOS sensor, delivering a resolution of 1.2 MP at 52 frames per second. The camera provides industrial image quality and high frame rates suited for a variety of applications. It features a standardized CSI-2 driver, supporting seamless integration and model flexibility, making it suitable for differing requirements. Characterization is conducted using EMVA 1288 Release 3.1 standards to determine unknown values, ensuring reliable imaging performance for monochrome models. The camera includes functionalities such as auto image control and general-purpose input/output management, enhancing its adaptability for various operating conditions. Alvium's software ecosystem, compromised of the Vimba X SDK, offers easy integration with third-party solutions like MATLAB and OpenCV, making system setup efficient and straightforward.Alvium 1500 C is a revolutionary MIPI CSI-2 camera optimized for embedded vision applications. The Alvium 1500 C offers the performance and versatility of industrial cameras for the embedded world. Equipped with industrial-grade CMOS sensors from ON Semiconductor, Alvium 1500 C cameras deliver excellent image quality and high frame rates.
The standardized CSI-2 driver ensures quick integration with the flexibility to change camera models easily.
Interface: MIPI CSI-2, up to 4 lanes
Resolution: 1280 (H) × 960 (V)
Sensor: ON Semi AR0135CS
Sensor type: CMOS
Sensor size: Type 1/3
Pixel size: 3.75 µm × 3.75 µm
Shutter mode: GS (Global shutter)
Lens mounts (available): C-Mount, CS-Mount, S-Mount
Max. frame rate at full resolution: 52 fps using 1 to 4 lanes, RAW8 (GREY)
ADC: 12 Bit
Image buffer (RAM): 256 KByte
Non-volatile memory (Flash): 1024 KByte
Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured without optical filter.
Quantum efficiency at 529 nm: 69 %
Temporal dark noise: 6.1 eˉ
Saturation capacity: 9430 eˉ
Dynamic range: 63 dB
Absolute sensitivity threshold: 6.7 dB
