ResinTech - Model MAG-MB -Mixed Bed Resin General Purpose DI H/OH form

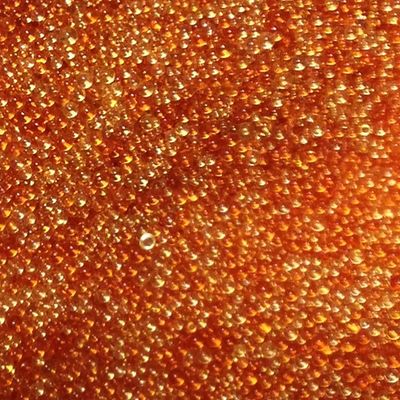

ResinTech MAG-MB is a one-to-one volume mixture of CG8-H (a hydrogen form strong acid cation resin) and SBG1P-OH (a hydroxide form type 1 strong base anion resin). MAG-MB utilizes amber colored cation and anion components such that the final mixture is amber or golden in color. ResinTech MAG-MB is intended for general purpose deionizing applications such as EDM operations or spot-free rinsing. MAG-MB is supplied ready to use with the cation component in the hydrogen form and the anion component in the hydroxide form.
- Polymer Structure: Styrene/DVB
- Polymer Type: Gel
- Functional Group: Sulfonic Acid (Cation) / Trimethylamine (Anion)
- Physical Form: Spherical Beads
- Ionic Form (as shipped): Hydrogen/Hydroxide
- Column capacity: > 0.45 meq/mL
- Volume Ratio (Cation/Anion) a: 50/50 percent
- Water Retention: 50 percent
- Shipping Weight: 43 lbs per cu. ft.
- Screen Size Distribution : 16 to 50 (U.S. Mesh)
- Resin Color: Amber (Cation) / Amber (Anion)
Technical Grade Mixed Bed
Ideal for value sensitive operations that require high resistivity water
Best Choice for EDM Operations
Designed for use in Electrical Discharge Machining applications where clean water is essential to precision metal cutting
Controlled Particle Size
16 to 50 mesh size provides a low pressure drop and superior kinetics
Optimized Cation/Anion Ratio
Mixture of resin has optimum ratio of cation to anion components to deliver high capacity in metal working applications
