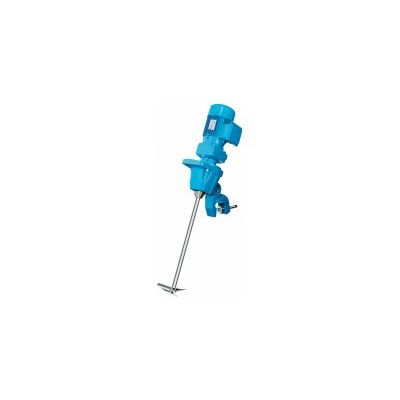

Chemineer - Model XPress -Mixers
USA - Europe 72-hour delivery 30-day `No Risk Trial` Total support for your mixing need 50+ years experience in mixer technology Industry standard IEC, off-theshelf motors from 0.18 to 1.5kw Features and Benefits Motors: Direct drive.
- 72-hour delivery
- 30-day “No Risk Trial”
- Total support for your mixing need
- 50+ years experience in mixer technology
- Industry standard IEC, off-theshelf motors from 0.18 to 1.5kw Features and Benefits Motors: Direct drive
Models
10XPB, 10XPC & 30XPC; Industry standard, off-the-shelf, IEC electric or air motors.
Gearmotors
Gear-reduced Model 40XPC; Low maintenance integral motor/gear drive offers 290 rpm nominal output speed.
Cast Handle
Integral cast aluminum handle for easy manoeuvrability and positioning.
Mount
High-strength cast aluminium C-clamp or cup plate mount offers 3-dimensional positioning with positive lock adjustability. Bung-mount mixer designed to fit all 2" NPT drum openings also available.
Shaft
Rugged, heavy-duty shafting manufactured from 316L SS. 16mm or 25mm diameter shafting straightened to 0.16mm per metre to reduce vibration and extend unit life. Shaft lengths to 2500mm.
Impeller
A high-efficiency impeller (JF-3) or propeller (JP-3) is standard depending on model. The bung-mount mixer, 10XPB, is available with a 100mm or 127mm collapsible propeller.
