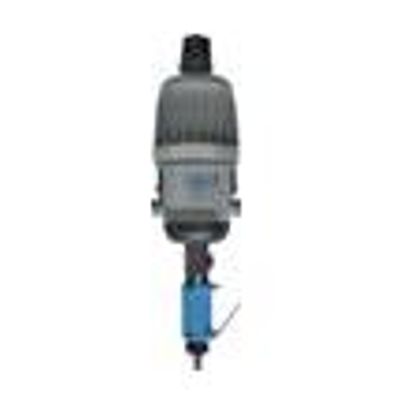

MixRite - Model 500 Series -Water Driven Injectors
The MixRite 500 Series Water Driven Injectors are designed for water flow up to 11 gpm (2.5m3/hr) and will operate from .8 to 11 gpm (3-41 L per min.). The 500 series is available as a CW model with seals and components for mildly aggressive additives, CL models for corrosive materials, acids, alkalines and solvents and a PVDF model for the most aggressive additives.
Most popular related searches
- Chemically resistant nylon reinforce fiberglass body on all models (PVDF body for PVDF model)
- CW models feature stainless steel springs
- CL and PVDF models feature Hastelloy springs
- Chemical shutoff on 571, 573 and 575 units
- Easily replaceable wear parts
- Higher operating range from 2.9 PSI to 120 PSI
- Hose barbs with swivel for easy installation

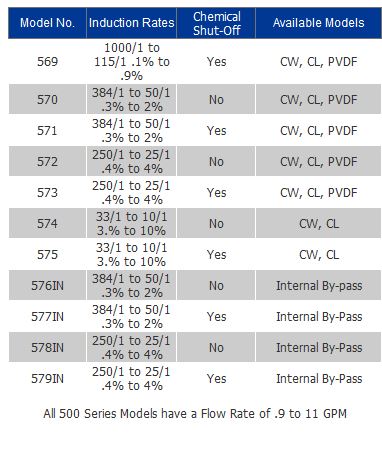

- Injection from 1,000:1 to 10:1 (.1% to 10%)
- Flow rate from .08 to 11 gallons per minute
- Includes 7 ft. 3/8″ inlet tubing with foot valve strainer
- Dimensions: 19 1/2″ high, 7″ wide
- Optional tip Kit for dilutions from 750:1 to 2000:1
