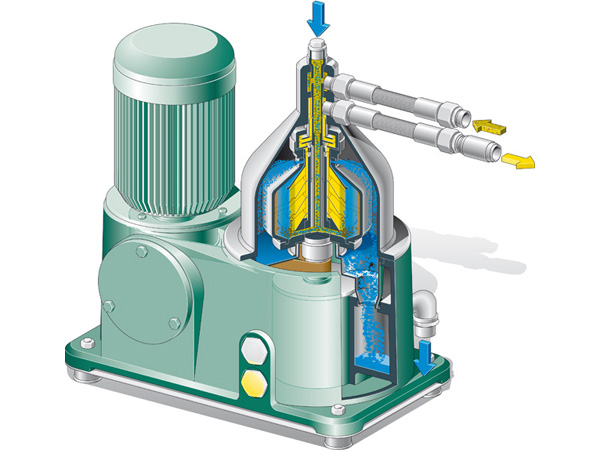

MKR - Model OTC 350 VA -Disk Centrifuges
Specific Characteristics of Centrifuge OTC 350 VA: Suitable for media with pH value of 4.5 - 14 and temperature of 20 - 85 ° C, Feed pump: Compressed-air diaphragm pump, Throughput 300 – 600 l/h, Pre Filter 350 µm, Manual Disludging, Level Controlled Tramp Oil Container, Adjustable Flow Rate.
- User friendly operation
- Cleaning without stopping the machine
- Precise removal of tramp oil
- Fine cleaning ›2 µm
- No consumable filter materials required
- Electrovalve for the feedback pipeline
- Suction System with magnet base 60/100 strokes
- Suction System with magnet base 110/180 strakes
- Suction System Free Floating
- Custom Colour
Housing
Welded construction of 3 mm sheet steel.
Double out- and inside coat of lacquer 2-K-lacquer (NCS-S 2010-R70B)
Hoses
Suction hose, Length 4 m, Ø 20 mm
D-coupler at the end of the hose
Recirculation hose cleaned medium
Length 4 m, Ø 20 mm, type Armorvin - HNA
Separator system
Solid matter collecting 3-phases-disk separator
Media-touched separator parts in special steel and red brass
Feed pump
Suction pump according to the side channel principle with flow regulating valve
Motor power: 0,27 kW at 400 V 50 Hz
Pre filter, as pump protection
Single filter, special steel insert 350 μm
Optionally different surface suction systems are available
Documentation
Operating manual, Electrical-connection-diagram
