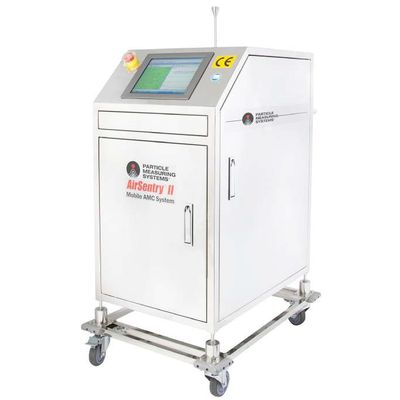

PMS AirSentry II - Mobile AMC Detection System
Designed to enhance fixed AMC monitoring programs, the AirSentry II Mobile AMC Detection System is the first truly mobile system for monitoring airborne molecular contamination in cleanrooms. Mobility plays an important part in a strategic AMC monitoring program, allowing contamination sources to be quickly located, quantified and eliminated. A local touch PC on the mobile cart provides instant feedback of AMC levels at each monitoring location. Facility Net software provides data storage and graphical displays in real-time while monitoring the specific environment. Onboard, chemically filtered, clean dry air (CDA) and vacuum are supplied within the cart enclosure to ensure that the analyzers can sample immediately upon relocation without long analyzer warm-up times incurred by competitive systems.
Ensure your operators and processes are safe with high sensitivity particle monitoring. AirSentry® II provides fast response and repeatable performance.
Monitors a Range of Contaminants
AirSentry® II detects and alerts users to small concentrations and changes in airborne levels of chlorides, acids, amines, and ammonia-containing species.
70 Parts Per Trillion
Resolve process issues or leaks before they impact product quality with early detection. These sensors have a sensitivity of 70 parts per trillion, so you discover changes quickly and react fast.
- Point of Use: AMC Monitoring: AirSentry® II Point-of-Use Ion Mobility Spectrometer
- Manifold: AMC Cleanroom Monitor: AirSentry® II Multi-point System
- Mobile: AMC Mobile Detection System: AirSentry® II Mobile System
Combine models for a comprehensive solution. For example use the point-of-use sensor with a manifold enables broad coverage, or with a central software platform allows for easy data acquisition and analysis.
- Pinpoint AMC issues in real-time, by identifying contamination sources
- Characterize AMC levels in multiple areas of large cleanrooms
- AMC analyzers available where and when needed, to deploy anytime
- Continuous actionable data in the process tool and facility
- High-sensitivity AirSentry II ion mobility spectrometry (IMS) analyzers detect acids,
- amines, ammonia and chlorides
- Mobile cart – move the system quickly to high-priority sample locations
- Onboard compressor, air-dryer, chemical filter and vacuum pump
- Battery back-up enables uninterrupted sampling, even during transport
- Touch PC and so ware display real-time and historical concentration data
- Optional wireless data communication
- Troubleshooting and spatial identification of contamination sources
- Isolation and verification of AMC events detected by multi-point monitoring systems
- Testing of AMC levels within minienvironments and process tools
- Testing and validation of chemical filtration performance
