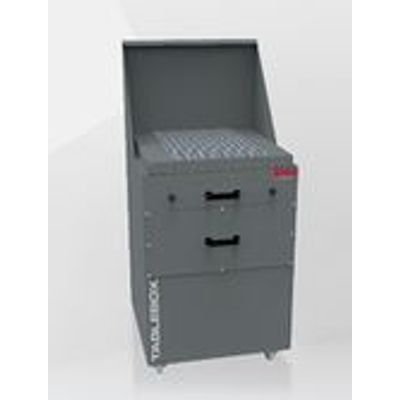

TableBox ActiveMobile Extraction Table with Activated Carbon Cartridges

SHARE
The TableBox® Active is good for wherever process-related, unpleasant odours occur. The activated carbon cartridges enable the devices to effectively reduce odour pollution in the workplace. The additional G4 pre-filter also protects the activated carbon cartridges (type A) from smoke. The attached side wall cladding ensures a very high level of odour collection across the table surface. And, to top it off, the process air is filtered through the activated carbon (type A) and can be returned to the working chamber.
Most popular related searches
  • Efficient process air collection
  • Mobile use and suitable for continuous operation
  • Compact and easy-to-handle design
  • Activated carbon cartridges (type A) for good flow dynamics and handling of the activated carbon
  • Quiet and energy-saving operation thanks to EC technology
  • Stepless adjustment of the air volume flow
  • A G4 pre-filter for longer service life of the activated carbon cartridges
  • Operating hours counter
  • Single-place extraction in industry and trade
  • Suitable for gaseous environmental pollutants and for reducing annoying and / or process-related odours
  • Max. airflow volumem³/h 1.000
  • Connection voltageV 230
  • Nominal frequencykW 0.51
  • Filter aream² 1.21
  • Number of filter elementsunits 1 (G4 Prefilter)
  • Activated carbon volumel 24
  • Number of activated carbon catridgesunits 6
  • Dimensions (L/W/H)mm 692 ×660 ×960
  • Weightkg approx. 100
  • Sound pressure leveldB(A) 60***** (68)
